Finger Exercises

G'MIC's singular terseness stems, in part, from substitution techniques. These permeate the language, typically making short work of overlong elements. Coupling names to pipelines — the making of custom commands — is a preeminent way to clarify code, hiding complexity behind nice names. Perhaps an esoteric topic for newcomers, but the mechanism is straightforward and shows how G'MIC extends itself from the core built-ins to an ever-widening réseau of custom commands. In line with this, custom commands associate easy-to-recall names with what might be otherwise ungainly riffs. We situate such inside the walled-gardens that amount to custom commands. Within our gardens, we trim, train and perhaps optimize what is there. Finally, we link to the outside realm through $-expressions, laying the groundwork for finger exercises.

Like riffs, finger exercises are iterative: change the code, review the result, design the next iteration. Unlike riffs, finger exercises take place within the confines of custom commands. The pipeline so embodied produces an overall result which may vary in particulars through the agency of command line arguments. $-expressions convey these to the embodied pipeline; the culmination may very well be a custom command of one's own making, behaving not unlike other G'MIC commands. No surprise there. G'MIC commands are — for the most part — custom G'MIC pipelines as well.

Basics

The eponymous command takes either a string, URL, or a local file argument, interpreting it as a custom command. However delivered, these sources have an overall form:


The colon character could be regarded (somewhat) as a syncopated equal sign. command converts this pattern into a key-value pair. The name to the colon's left sets a retrieval key, the custom command's name. The right associates a pipeline with the key.

The pipeline on the right can be empty, a curiosity that yet proffers practical results. By way of illustration, G'MIC defines such a no-op command: cli_start, which always runs first, though implicitly. For the unenlightened, cli_start does nothing at all — as it's initially associated with an empty string — but, among the cognoscenti it can be re-keyed to implicitly execute whatever it is that the cognoscenti desire to have executed as the interpreter gets under way. Typically — but not necessarily — such could be a series of command invocations. These might extend G'MIC with site-specific customs so as to be always available — without a special effort — as with the custom commands making up the standard G'MIC distribution.

Newcomers may tuck this cli_start curiosity off to one side. The key takeaway is the fundamental character of the : operator: it is the mechanism that extends the G'MIC command line interpreter so that it can ingest open-ended collections of custom commands. Absent this, and G'MIC would be limited to its core set of built-ins and would be a far less versatile tool. For our finger exercising purposes, we shall harness the : operator to hide ungainly riffs behind nice names. So, without knowing much about G'MIC at all, we can commence extending it to suit our own purposes.

Processing Custom Commands

During pipeline processing, G'MIC's command line interpreter first tries to match encountered command names with built-ins. Should this fail, it sallies a similar bid with registered custom command names. If one matches, the interpreter substitutes the registered pipeline for the custom command name, embarking on an itemization step where $-expressions, marking substitution points, are replaced by corresponding command line arguments.

Itemization complete, the command line interpreter then enters a new scope. From this elevated prospect, the command line interpreter operates on the custom command pipeline, that of the prior "parent" scope effectively on hold. So it remains until the interpreter completes the elevated scope and resumes processing the parent. Of course, it may encounter yet another custom command in the elevated scope, setting off a further scope passage — and so goes the larger game of pipeline processing, a tree-like course, in which we can register our own branches — custom commands — stemming from some pipeline that we have composed.

A First Custom Command

Making a custom command from a riff is of particular interest. Perhaps we'd like to hide the pipeline that makes Difference Ellipses and instead invoke such with a simple name. This can be readily done with copy-and-pasting the riff to a fresh text file, one to be later employed by command. Here is the text file's content:


No prettifying here. We just copied the run command argument — the latest riff. To this pipeline, we prepended a custom command name ("diffellipse") and the : operator.  So written, the colon operator defines a custom command named diffellipse and keys it to our riff. We then write this compilation out to a file using the name diffellipse.gmic, as it is customary, though not necessary, to give such files .gmic extensions.

When given diffellipse.gmic as an argument, G'MIC's command reads the definition within and registers it under the key diffellipse, defining a new custom command. To see how all this plays out, type:


where the file diffellipse.gmic occupies the shell's present working directory — $PWD in Unix and Windows Powershell; anywhere else and your mileage may vary. And that is all that is needed to introduce a custom command to G'MIC.

Debug dumping

Since the custom command has been endowed with "debug info," those afflicted with a tenacious and unrelenting curiosity could try:
and compare the ensuing debug-induced fire hose of pipeline processing steps, elided here, with the précis given in Processing Custom Commands, above. Debuggery Cheat provides useful background as well.

It is worth learning the dark art of debug dumps. While voluminous, they show the interpreter's progression through divers processing phases: itemization, scope entry, execution and scope return. Those spelunking their G'MIC environments may trace command interpretation through any number of scope passages. Such enhances peripheral vision, disclosing, perhaps, an involvement of commands thought to be unrelated to some vexatious G'MIC behavior. Outside of debug dumps, such interrelations can be hard to track down. Germane to this, hark ye in this debug dump the emergence of cli_start. But for this dump, it flits through command processing like a neutrino.

Refining Custom Commands

While we may have done the minimum for creating a custom command, the effort falls short of a decipherable version. So here is the next cut:


Such clean-ups provide good returns for time invested. From such, warrantable practices emerge:

1.	Write just one command per line.
2.	Always provide specialization prefixes (+/-).
3.	Keep comments as terse as possible — but do comment!
4.	Favor standard command names over shortcuts.
5.	Label images with names and use these, where possible, for clarity in selections.
6.	Use pips (., .., ...) in the common case of choosing the last, penultimate, and third-from-last images on the stack.
7.	Indent flow control commands.

These practices might be called the tutorial style. Many cognoscenti eschew any or all of such — G'MIC still works. Indeed, with waxing expertise, you may even run with that crowd, using shortcuts, omitting command prefixes, shunning names, multiplexing commands across single lines, indenting haphazardly, if at all — and you will not be struck by lightning.

That said, these practices are for your benefit. They augment what scripts convey about their means of working, and, as an initiate, you can use all the insights, observations and reminders that you might leave to your future self. Even in the present tense, should you aim to collaborate with colleagues over perplexing facets of G'MIC, taking care to be understood is at least a sociable and gracious way of advancing the cause.

Command Arguments

As written, diffellipse is a one-trick pony. It is uncoupled from outside influences and produces unvarying outcomes. There can be use for such commands — remove_empty performs a clean-up operation so particular in its character that any argument is superfluous. Yet, by and large, commands are capable of broad behavior — perhaps quite broad, as with blend — from which arguments coax narrower particulars.

With G'MIC, couplings to the outside world proceed along two lines, Command Selections and argument lists:

1.	Command selections define sets of images upon which commands can operate. Selections cover this practical art.
2.	Arguments establish how the command operates. $-expressions establish a system of markers that correlate argument lists with substitution points. The interpreter transposes argument items into scripts at the various substitution points.

In pipelines, arguments follow their affiliated commands, set off from it by spaces and themselves forming a comma-delimited sequence, one embedding no white space unless quoted. Depending on shell environments, such quotes may need to be escaped as well.

The interpreter assigns ordinals to the command itself and follow-on arguments. The command itself gets zero; argument items get sequentially higher ordinals. So, for some fictional command foo:

Concurrently, custom command foo harbors substitution points marking where argument values go. They appear as dollar signs followed by ordinals, each referencing the corresponding argument:
Taking a lead from image list indices, $-expressions may be negative, indexing from the last argument to the first. With a four-argument command, reference the last item with $4 or $-1; reference the penultimate with $3 or $-2, and so on.

Such $-expressions are often taken to be substitution variables. The leading $ lends a superficial resemblance, but their substitution mechanisms differ.

When it first identifies a custom command, the interpreter undertakes a substitution pass, marked in debugging sessions with banners like <gmic>./ Found custom command 'diffellipse:. During such, the command line interpreter "expands" the custom command, preparatory to entering its scope.

This expansion, in part, entails substituting $-expressions with corresponding argument values. Once the interpreter "enters the scope" of the custom command — that is, begins interpreting it — all $-expressions have been replaced by their commensurate argument values, such that twice_ninety_six=$2 becomes twice_ninety_six=192. Markers like $2 may occur anywhere and in any multiplicity. Nor are there any constraints on an order of appearance. The only cautionary is that $-expressions are not substitution variables.

With $-expressions in our kit, we can now couple finger exercises to the external world of arguments. We begin with a version of diffellipse that admits apply_curve adjustments, this to see how vertex movement affects rendering.

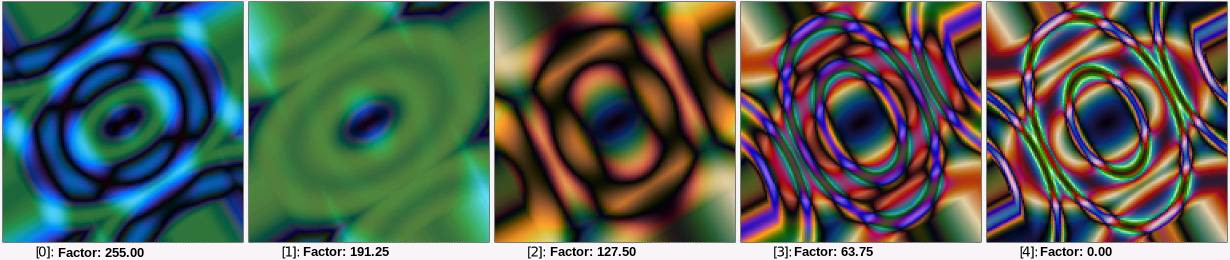

Invoking diffellipse with arguments 0,255,5 produces a "Whitman's Sampler" of variations — the finger exercise realized:

Diffellipse Notes:

Line	Remark
2-4	Substitution markers: Here are the three $-expressions that the interpreter substitutes for the first, second and third arguments. A subsequent assignment of argument values to substitution variables with purposeful names purchases a bit of readability for a tiny price paid in performance. Mark the substitution sequences at play here: First, the interpreter replaces $-expressions with argument values, preparatory to scope entry. Second, the interpreter enters the elevated scope, that is, commences interpreting the pipeline which diffellipse embodies. Third, while processing lines 2-4, the interpreter keys numeric values 0 to lo, 255 to hi and 5 to step. When operating within this elevated scope, the interpreter suffers total amnesia concerning matters of the parent scope. It sees naught strings like $1, $2 or $3 but their argument values, 0, 255 and 5.
8-10	Reverse lookup: It has been asseverated elsewhere that G'MIC largely stems from a built-in self-extension mechanism, the : operator. Take polar2euclidean. We may write gmic -help polar2euclidean in a shell and receive intelligence, perhaps, of the y-axis collapse to an origin-situated singularity, with points hitherto at infinity mapping to a circumference situated Way Out There on the Circle at Infinity. The sense of what that means — really — is palpably absent. From there, one might sally forth with gmic run 'r=16 {64*$r},{64*$r} grid. {2*$r},{2*$r},{$r},{$r},1,0xaaaffaaa,255 polar2euclidean.' and behold the transformation of a rectangular grid into a pretty fair dinkum spider web — Polar to Euclidean visualized. That may be good for a gut feel, but what is really going on? For that, ask G'MIC via its own self-deconstruction mechanism: gmic echo $${ <custom command> }. Write: gmic run 'echo $${polar2euclidean}' Perhaps what results hurts your head. Indeed, it looks like a riff. But, if you have been paying attention so far, you know what to do with riffs! That is, take the deconstructed command, drop it in a file called (say) yowhutsthis.gmic and prepend that Delphic string with yowhutsthis: . Save the file. Apply to its contents the tutorial style: add comments, whitespace, regroup commands one-to-a-line, label images with names, run your new yowhutsthis command from time to time in place of polar2euclidean because it's yours now. You can break it however you see fit as a means toward a better understanding: comment lines out, change commands, reorder lines — you won't be hurting polar2euclidean in any unkind way — yet you can see how its mechanism, now transposed to yowhutsthis, goes about its game. Drop the G'MIC display command here and there to stop the script and see what is going on. It's G'MIC's script breakpoint command, travelling incognito. From time to time, G'MIC's deconstruction mechanism will tell you — nothing at all. Why? G'MIC is not wholly self-referential. Try as it might, it can't deconstruct its built-in parts. It's like calling itself up on the telephone: it always gets a busy signal.
13,16,21 25,29,33 40,44,49 52…	Named collections: In these and other lines, we frequently reference images through names. Invoking the name command enrolls its selected images into a named collection identified by the command's argument, creating the collection as necessary. Further on, referencing such collections in selections goes on to picking its members. So frequently are single images enrolled as collections-of-one, it becomes easy to think that name directly labels images. This blearing of a grouping mechanism is largely free of serious consequences, so long as the complete mechanism is remembered when needed. As a practical matter, referencing images through name collections relieves one of explicit index tracking. image indices change as list items appear, disappear and shift position. Enrollments in named collections persist across such volatility.
18-50	Repeat loop: The construct repeat <step_count> {…} allied with the pre-defined substitutions $> and $< constitutes one of G'MIC's flow-control commands. This and other flow-control commands of the ilk make for command blocks; repeat 's initial argument sets the number of iterations that the block undergoes. Within such blocks, substitution variables $> and $< assume ascending and descending values, respectively, for step counts and a step number .
19	Image directives: Expressions of the form { <index>,<math expression> } establish a Math expression image directive, a means to compute image-dependent values with respect to a reference image and export such to substitution variable like $factor. <index>, if present, specifies the reference image; absent such, the last image on the list serves as the reference. Here, the stated math expression performs step ($>) dependent interpolations between the argument-given limits lo and hi:

	a factor, , ranges from a high pixel elevation — with count, , equal 0 — to a low pixel elevation, , when equals ; the "elevation" of transfer function vertices thus vary from a high to a low as the iteration proceeds, affecting image rendering with each step and giving rise to the "Whitman Sampler" outcome.
49,52	Hat (^) selections: In Selection Notation, the caret ("hat") negates selection expressions, specifying "everything but the selection", so [^diffellipse,circle] selects every image on the stack but the members of the combined diffellipse and circle collections.

A casual perusal of diffellipse.gmic offers many other places where numeric literals can be replaced by $-expressions, allowing command line manipulations at distinct locations in the script. We could institute "squeezing factors" for ellipses at line 13. Or pick different image rotations at lines 29 or 40. Or make additional vertices dance in apply_curve argument lists at lines 21 and 33. Carrying on any of these lines of investigation is the quintessential realm of finger exercises, which can be thought of as plotting various outcomes against ranges of arguments for the purpose of better understanding how commands behave.

Exploring Custom Commands

Finger exercises and G'MIC's Mathematical Expressions operate in close league; the latter oft furnishes the computational engines for the former. This is especially true with command behavior explorations. Of those commands in the official distribution there may be the (vary rare) tutorial illustrating a command's behavior under a range of circumstances. Given the effort to set such tutorials up, the usual provender are the pithy examples found in the Technical Reference. These constitute terse little finger exercises in their own right, subject to augmentation along some line that piques one's curiosity — to wit, this riff off of the shift command:

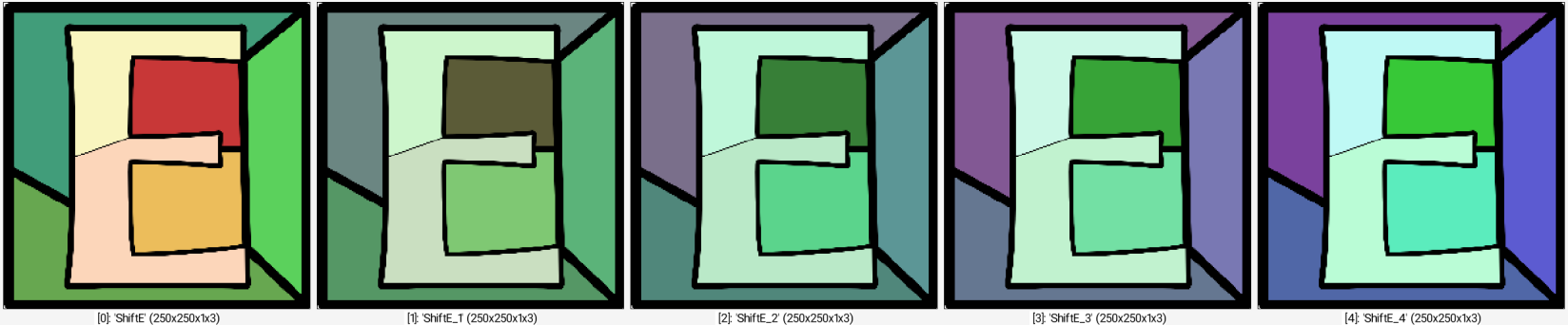

cshift is a finger exercise for exploring shift 's color space behavior, the likes of which may not be manifestly obvious from its Technical Reference entry. G'MIC Images possess four dimensions, one being the spectral axis; we may shift along that as well as the width, height or depth axes — the spectral axis is as geometrical as the other three. That said, intuiting a 10% shift along the spectral axis is not as clear as a like shift along the width or height axes. So cshift has been designed to see just how shifts along the spectral dimension go. Observe that shift 's fifth argument sets a cyclic or periodic image boundary policy, so data shifting off of one edge automagically appears at its opposite edge; the spectral axis behaves like a ring buffer, blue data cycling into red or red into blue as the direction goes.

Checking Arguments

cshift takes two arguments, a repeat count, rcnt, and a shift step, stride. This stride may be positive or negative — or zero! pointless though that may seem. The sign of the stride argument controls whether we channel-shift toward blue (positive) or red (negative).

On the other hand, a negative repeat count (rcnt) just perplexes. What could a negative number of trials mean? So does a zero count bewilder. There ought to be a way to rule out nonsensical arguments — and there is.

The check command nominally tests logical expressions, these rules taking the form of mathematical assertions. if an assertion proves to be false, check stops script execution. The G'MIC interpreter commences a special mode of operation called exception processing, which, absent special steps, halts the script with an error message. Otherwise, a true assertion allows the script to proceed.

For our purposes, we compose mathematical assertions from $-expressions, writing them in such a way that $-expressions falling within acceptable ranges lead to true assertions; silly ones lead to falsehoods. With that in mind, we modify cshift:

Here, we encounter new $-expressions, these extending beyond the elementary forms found in differentiating ellipses:

${n=m}	Default Values: allows the omission of arguments. If the nth ordinal is omitted, then the corresponding marker in scripts defaults to m. If the omitted item appears in the beginning or interior of an argument list, retain commas. Thus a,b,,d omits $3 and raises an error unless {$3= n } has been set. Commas may be omitted with trailing arguments. Thus, a,b,c omits $4 and raises an error unless{$4= n } has been set.
a,b,c,d=${1,2,3,4}  a,b,c,d=${1,2-4}   a,b,c,d=${1-4}	List Assignments: $-expressions may be written in list form, commas separating ordinals, and hyphens can abbreviate consecutive ordinals. So written, such $-expressions can initialize corresponding lists of substitution variables.
a,b,c=${^1}	Excepted List Assignments: defines three substitution variables with initializers $0, $2 and $3, omitting the first item in the argument list.

With these new expressions, we can rewrite the initial lines of differentiating ellipses more compactly:

Skipping Arguments

We see what check is for, but what about -skip ${2=1}?

G'MIC's help command, in its pithy way, furnishes prosaic help: "Do nothing but skip specified item." Well, yes, but what for?

Sometimes the command interpreter needs to be told not to itemize an item. The skip command effects this by making its argument disappear. That argument, having been made to disappear, no longer figures in the subsequent command line itemization. There are circumstances where that can be useful.

A quandry arises with processing custom commands. Recall that whenever it encounters a custom command, the interpreter passes through three phases: itemization, scope-entry, then, in an elevated scope, interpretation of a now-itemized custom command. During itemization, the interpreter encounters $-expressions declarations like ${2=1}. This asserts that the second argument has a default value of 1. That is all well and good. But recall that during itemization, the interpreter also substitutes $-expressions with argument values, so the interpreter substitutes the ${2=1} expression with the value given by the second command line argument, if one has been given, or the default value of 1, otherwise. In any case, the substituted value, instead of the $-expression that spawned it, becomes an item on the pipeline, awaiting further evaluation when the interpreter works its way up to the last phase: processing the elevated custom command pipeline. The question arises, does this item on the pipeline become an inconvenience?

Maybe yes. Maybe no. Depends on how the script writer goes about handling arguments. Should the interpreter find a command preceding the wayward item, it then becomes an argument of that command. If that command happens to be skip, then the item is processed by skip. By design, skip just consumes it. The script writer may desire such, having only the aim of setting a default. An item lands on the pipeline but the script writer has no plans for it, just wanting it to go away. In consuming its arguments — and nothing else — skip serves that end perfectly. Alternatively, the script writer can still make use of the item, perhaps by writing stride=${2=1} instead, defining the default for the second argument and making use of the resulting itemization in one fell swoop — a waste not, want not, ploy.

The Custom Command Environment

Linking a name with a pipeline, the unassuming colon character in: name : pipeline brings about an appreciable extension to G'MIC's repertoire. Once established, the interpreter does more than bring forth a pipeline keyed to a name. It sets out the milieu in which the interpreter operates, necessary, for when it enters the elevated scope of a custom command the interpreter commences operation within a "walled-garden": a practical amnesia to limit what the interpreter must track. This cannot be total amnesia; descry that $-expressions and selection decorations, each in their own, especial way, convey beyond-the-wall facets into the garden: the arguments given to the command and the images upon which it is to operate.

We've seen how some $-expressions work to import argument values from beyond the pale and close with the remaining ones. Along with a collection of predefined substitution variables, these make up the interpreter's custom command environment:

$*	is substituted by a verbatim copy of argument list. As a verbatim copy, elided arguments are not represented with their default values, should any be defined.
$"*"	is substituted by the sequence of specified arguments, separated by commas , and includes any elided arguments; these are set to default values.
$#	is substituted by the maximum index of known arguments. The pre-defined substitution variable $! furnishes the count of selected images.
$[]	is substituted by the list of selected image indices that have been specified in the command invocation.
$?	is substituted by a printable version of $[]. Typically these forms are used in command descriptions.
$=var	is substituted by the set of instructions that will define substitution variables with keys: var$i for each argument, i. for i in [0...$#]. The key for the custom command name is var0. The key for retrieving the first argument value is var1. Useful for giving custom commands variable-sized argument lists. Template names (var) must use character set [a-zA-Z0-9_] and cannot start with a number. See the following example for a typical use case.

To see these in operation, give some thought to argfun.gmic:

Arg Fun Notes:

Line	Remark
7	Dollar Signs and Numerals: As with any $-expressions, the interpreter substitutes them for their argument values early on. A consequence of this is that $-expressions are always replaced with the value that the current environment provides during itemization; notions of escaping with single or double quotes do not provide the expected protection. Should one absolutely need to have a numeral follow a dollar sign, avoid triggering $-expression substitution with a pair of double quotes following the dollar sign, as in: $""1.
8	Variable-length Argument Lists: During itemization, the interpreter substitutes the $-expression of the form: $=myargs with a sequence of substitution variable definitions. In the present example, given above at line 8, the interpreter substitutes for the $-expression $=myargs  the replacement string: myargs0,myargs1,myargs2,myargs3,myargs4="argfun","123","cats","dogs","Foo!", a rewriting taking place during the itemization phase of argfun and following the List Assignment form given above. In the follow-on scope-elevation phase, the interpreter's second encounter with line 8, now rewritten, finds the substitution variable definitions. A script writer may verily proceed with dereferencing such keys as $myargs0 to obtain the custom command name, or $myargs2 to obtain cats, but might hesitate on how best to dereference the last or penultimate values of an argument list, as that can vary in length from one command invocation to the next. The $-expression $# comes to the rescue; during itemization, the interpreter transforms it into the maximum index of known arguments — one less than the list length. The string ${myargs{$#}} resolves first to ${myargs{4}}, during itemization, thence to Foo! during scope elevation and interpretation; the script writer may accomplish relative indexing with respect to the end of argument list though subtractions from the base value $#.
9-11	Nested substitutions: As an additional boon, the interpreter can dereference nested substitutions, working from the innermost substitution outward. In truth, the multiple dereferences occur internally and the interpreter negotiates the substitutions atomically. The repeat … done loop, comprising lines 9-11, harnesses the technique. Recall that $> is a pre-defined substitution variable that dereferences to the forward count of repeat … done loops — while $< dereferences the reverse count. So on the second iteration, the construct ${myargs{$>}} resolves first to ${myargs1} — recall that we count from zero — then resolves to 123, given the present example. Observe that nested curly braces are necessary. The alternative notation, $myargs$>, does not construct a nested sequence but is a simple concatenation. So — in one fell swoop — $> simultaneously resolves to the current forward loop count, while the other concatenation element, $myargs, resolves to an empty string. Recall that the key myargs has never been defined, just keys like myargs0 and the like, all ending in ordinals.

Uncommand

uncommand provides the counterpoint to command. It erases custom commands. From its invocation forward, its arguments, keys to custom commands and their corresponding pipelines, are removed from the environment.

You could — should you so desire — cosplay Dr. David Bowman, back in some alternative-history 2001, whilst he progressively unmounted the cognition modules in the Heuristically Programmed Algorithmic Computer Mark 9000 (HAL-9000), akin, perhaps, to removing all custom commands:


Now, isn't that fun?

But — but — (you might 'but'), how could such a possibility even be allowed to be possible? Shouldn't there be — well — safeguards?

Well — in a word — why? Aren't you grown up now?

This, for newcomers, may be G'MIC's most peculiar, yet beguiling, facet. Without question, G'MIC allows you to inflict near-total amnesia and nary a prompt: "I'm sorry Dave, I'm afraid that I can't allow you to do that." will arise. No. You are free to do what you want — free to do what you will — including being silly.

It is possible, sensing the lack of training wheels, that newcomers get nervous. Don't let that be a hinderance. It's not like practicing flight training stalls at fifteen hundred meters and inadvertently yawing into a spin (oops). Nothing about G'MIC should put you in the midsts of a grimy fireball at the end of some cornfield somewhere. At worse, you'll get some enigmatic message from the uncaught exception and be no more bemused than awakening in an Empire-style luxury suite with some damn sarsen at the foot of the bed. Even the example given above is no where near the averred Cretaceous–Paleogene extinction event. uncommand cannot uncommand the built-ins. The basic fabric of G'MIC remains intact. You could still input an image (a built-in) and blur it (another built-in), and only run to the ruts when the implied display command at the pipeline's end turns out not to be there, nor anywhere:


That arises because display is the default output command, should one not be given and, in recent G'MIC implementations, is a custom command — that you have just thrown out with a few thousand others. No mind. Add -output. example_blur-10.png or some such to the end of the pipeline — output is yet another built-in — and the much-abridged interpreter will still save the ensuing image and land safely. What's more, after the End G'MIC interpreter advisory, you are back to the shell, nothing has happened to the installed G'MIC binaries and all the essential command scripts are still in place. Next invocation, you are back with a full deck. So, no worries, mate.

Let's close with this: do your riffs. They embody full-on play. You can't possibly break anything important and the more that you select unfamiliar commands and riff with them, the faster that your grasp of G'MIC solidifies. From time to time, here and again, you may write a riff that shows promise: make it a custom command. Work out good arguments. Extend G'MIC your way.

And have fun.
