blend

Arguments:

Description:

Blend selected G,GA,RGB or RGBA images by specified layer or blend all selected images together,

using specified blending mode.
blending_mode can be { add | alpha | and | average | blue | burn | darken | difference |
divide | dodge | edges | exclusion | freeze | grainextract | grainmerge | green | hardlight |
hardmix | hue | interpolation | lchlightness | lighten | lightness | linearburn | linearlight | luminance |
multiply | negation | or | overlay | pinlight | red | reflect | saturation |
screen | seamless | seamless_mixed | shapeareamax | shapeareamax0 | shapeareamin | shapeareamin0 |
shapeaverage | shapeaverage0 | shapemedian | shapemedian0 | shapemin | shapemin0 | shapemax | shapemax0 |
shapeprevalent | softburn | softdodge | softlight | stamp | subtract | value | vividlight | xor }.
opacity must be in range [0,1] (or [0%,100%]).

Default values:

blending_mode=alpha, opacity=1 and selection_is=0.

Examples of use:

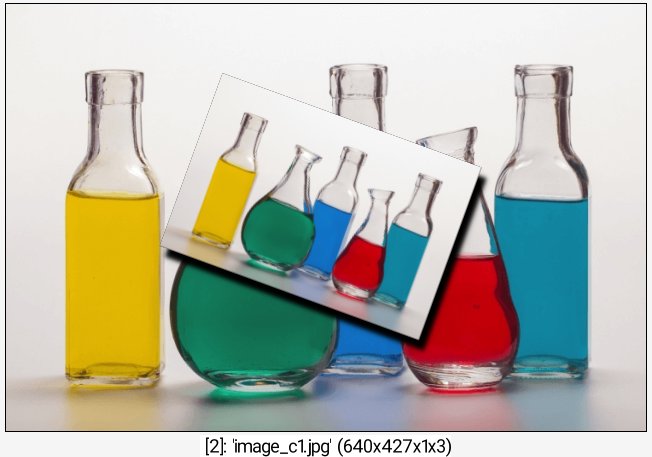

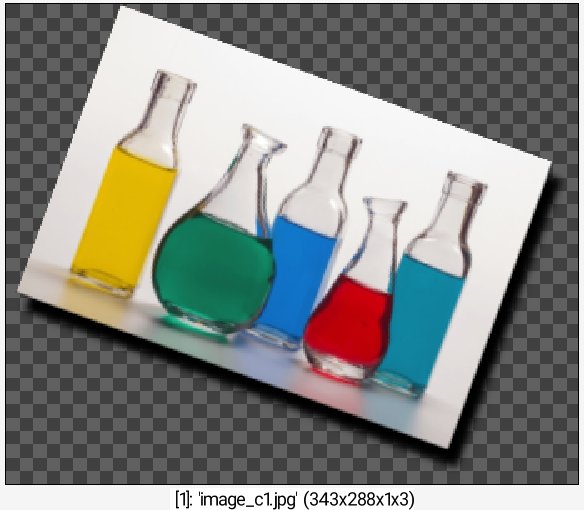

• Example #1

image.jpg +drop_shadow , resize2dy[-1] 200 rotate[-1] 20 +blend alpha display_rgba[-2]

Command: image.jpg +drop_shadow , resize2dy[-1] 200 rotate[-1] 20 +blend alpha display_rgba[-2]
Command: image.jpg +drop_shadow , resize2dy[-1] 200 rotate[-1] 20 +blend alpha display_rgba[-2]
Command: image.jpg +drop_shadow , resize2dy[-1] 200 rotate[-1] 20 +blend alpha display_rgba[-2]

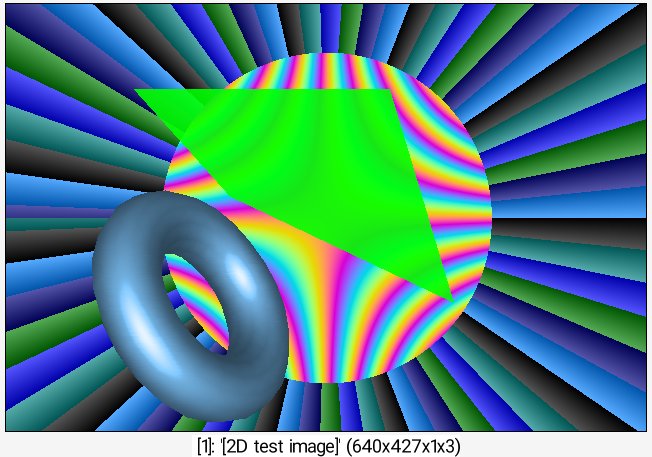

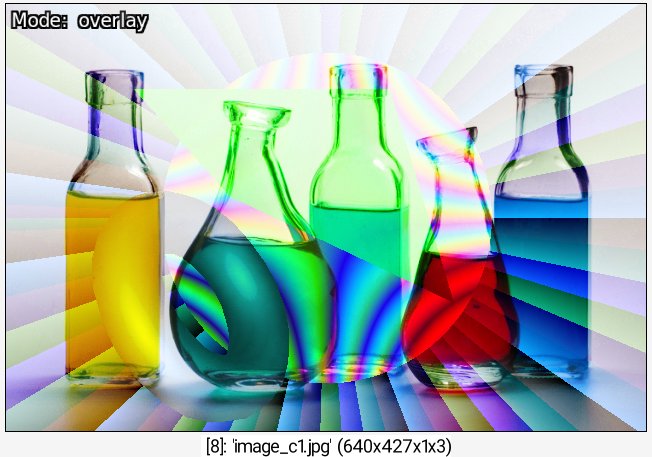

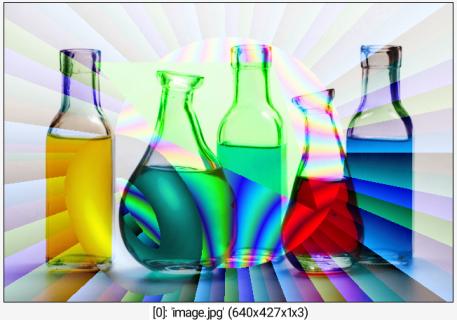

• Example #2

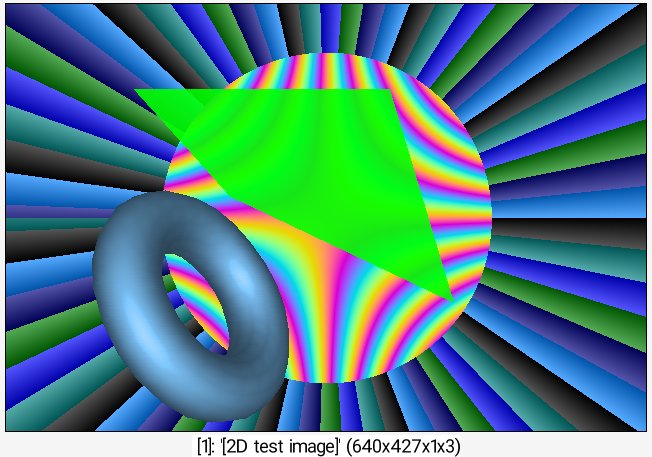

image.jpg testimage2d {w},{h} blend overlay

Command: image.jpg testimage2d {w},{h} blend overlay

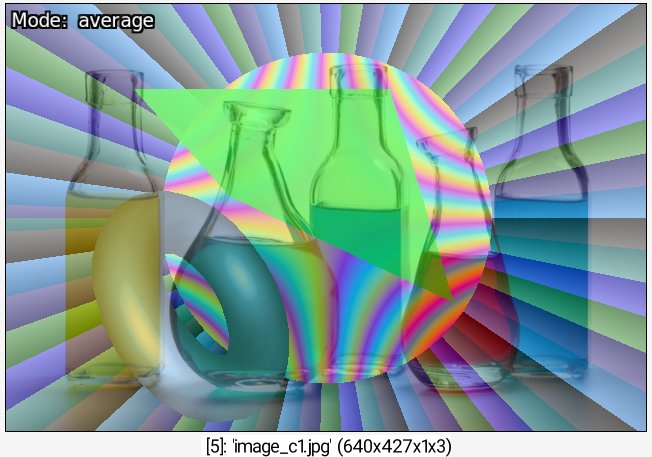

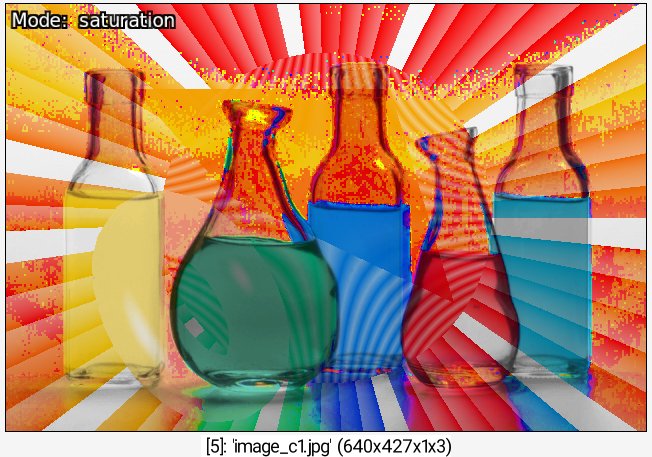

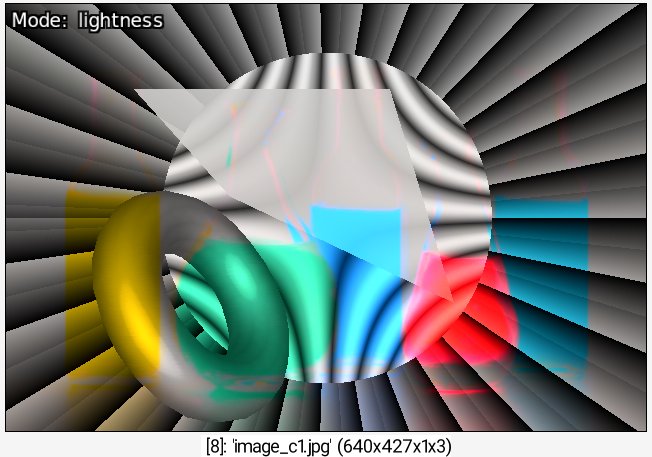

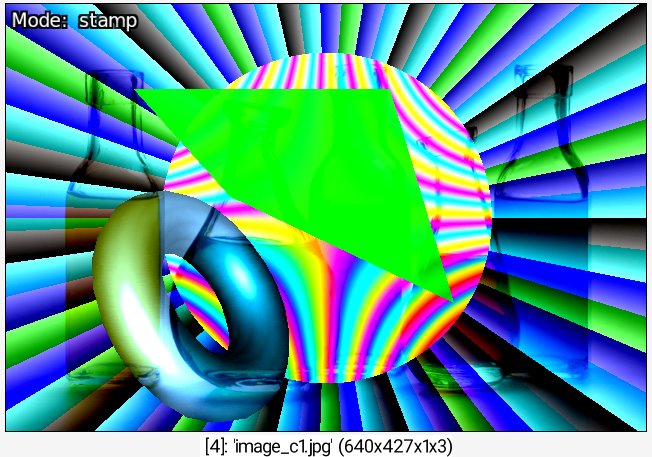

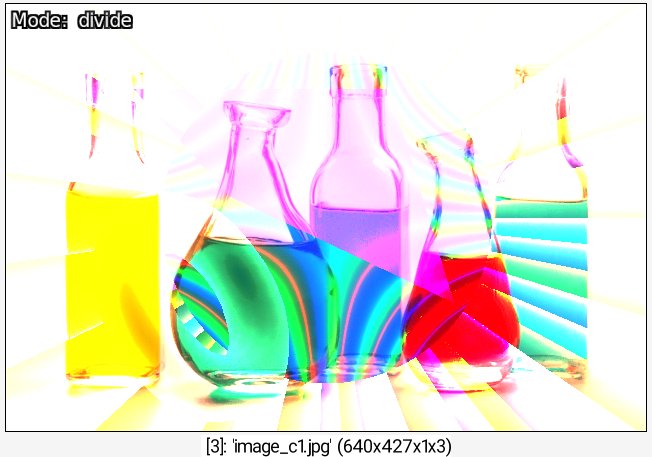

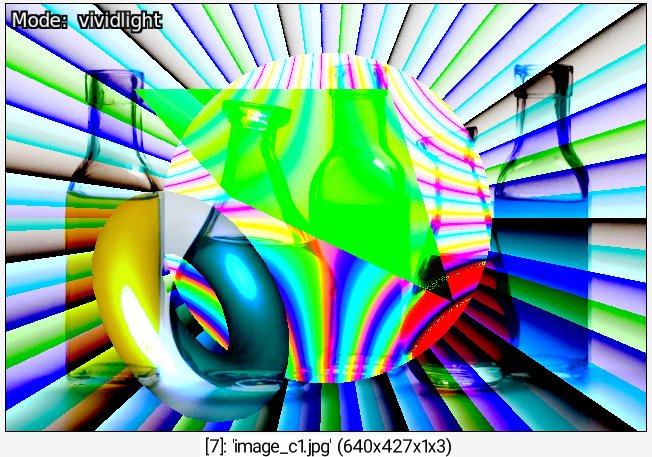

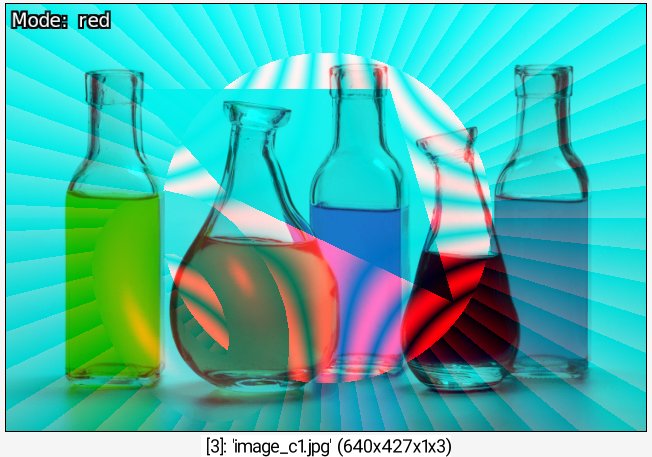

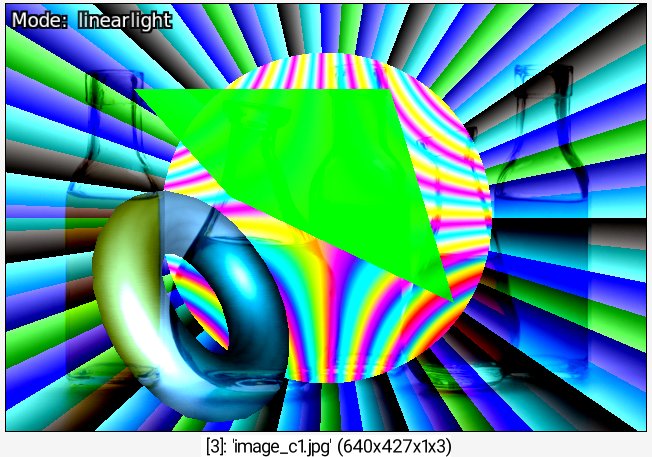

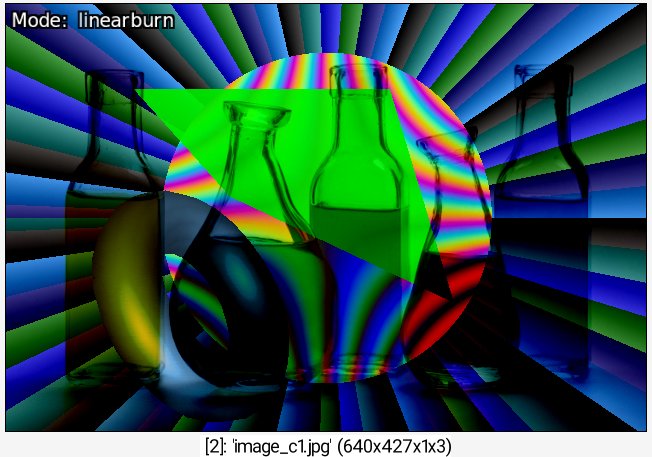

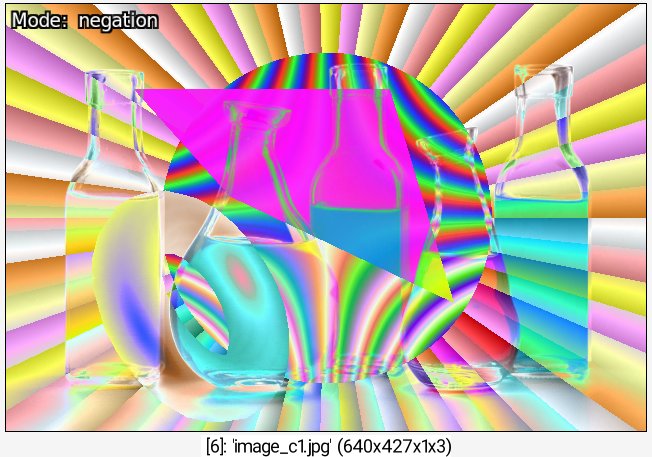

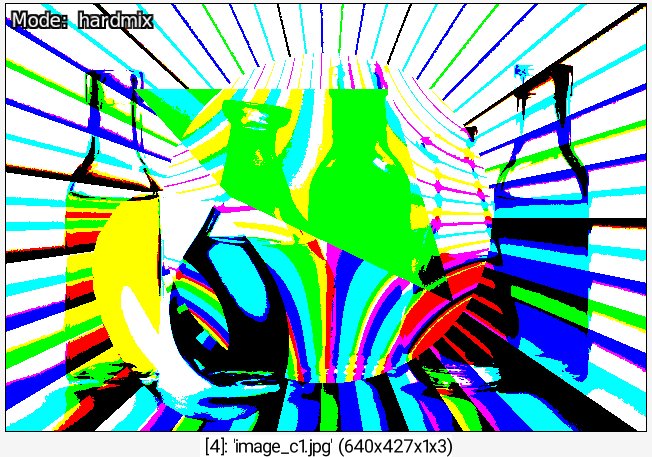

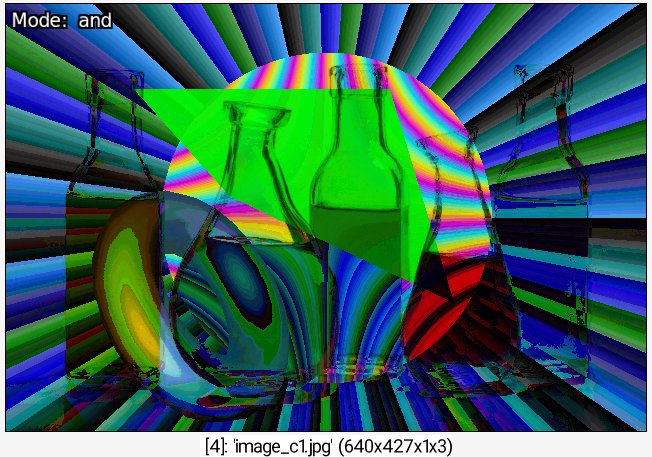

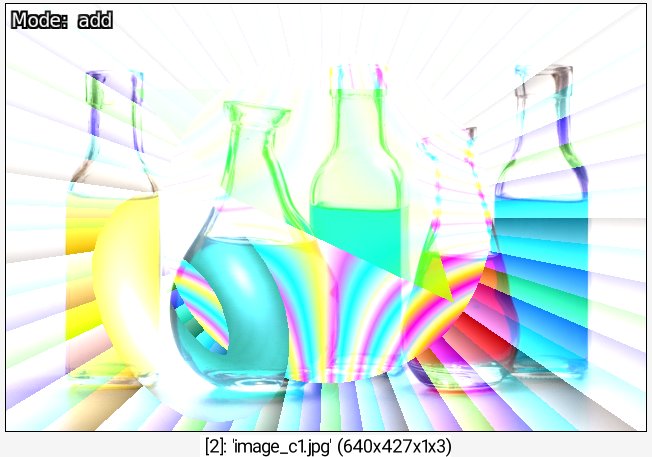

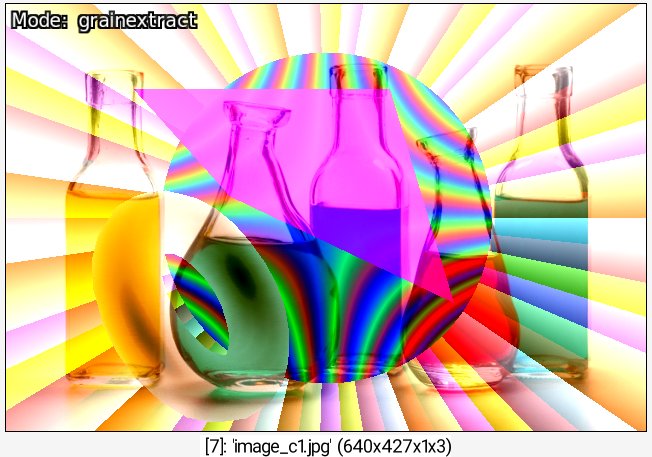

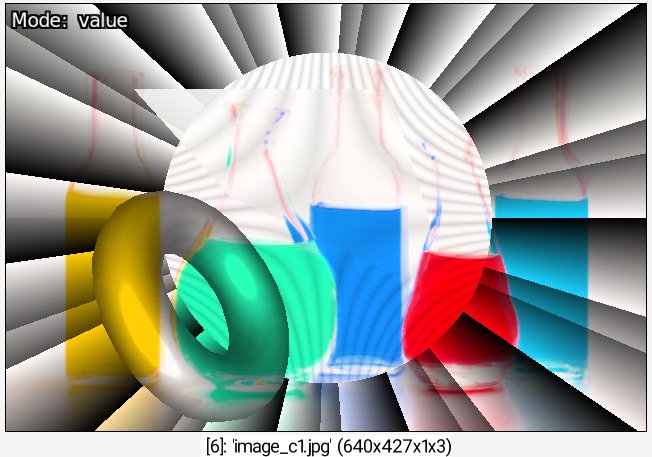

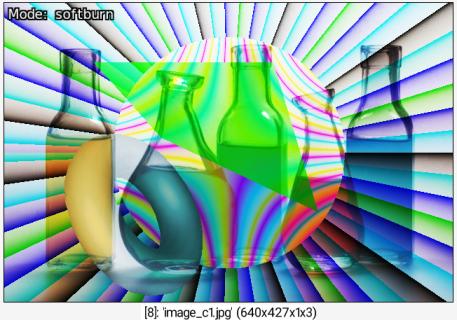

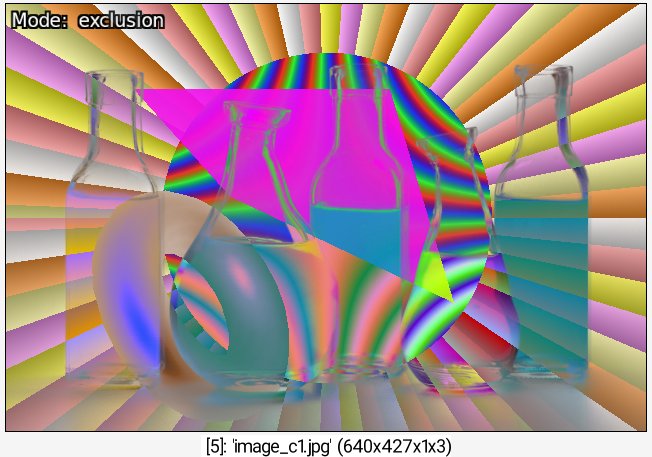

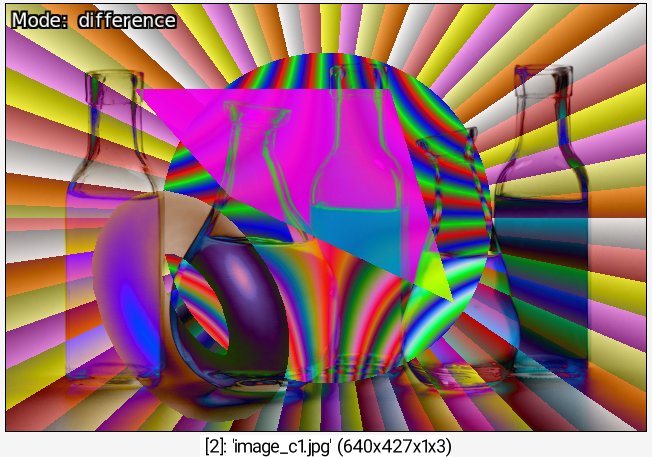

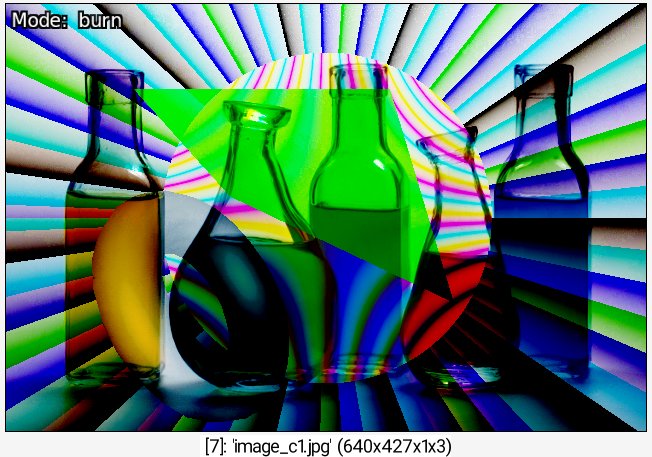

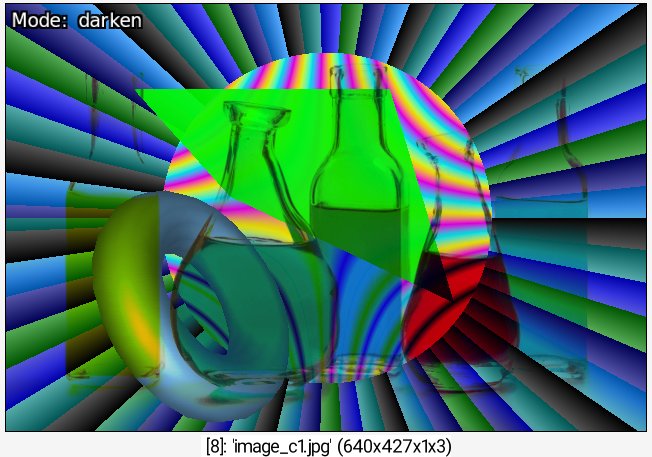

• Example #3

command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken

Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex add,alpha,and,average,blue,burn,darken

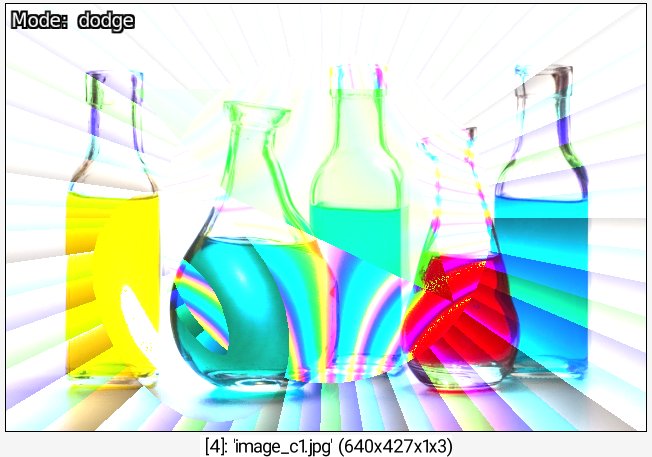

• Example #4

command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge

Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex difference,divide,dodge,exclusion,freeze,grainextract,grainmerge

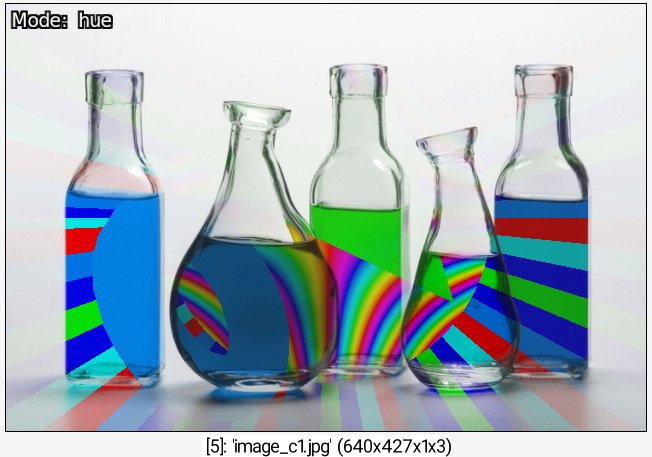

• Example #5

command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness

Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex green,hardlight,hardmix,hue,interpolation,lighten,lightness

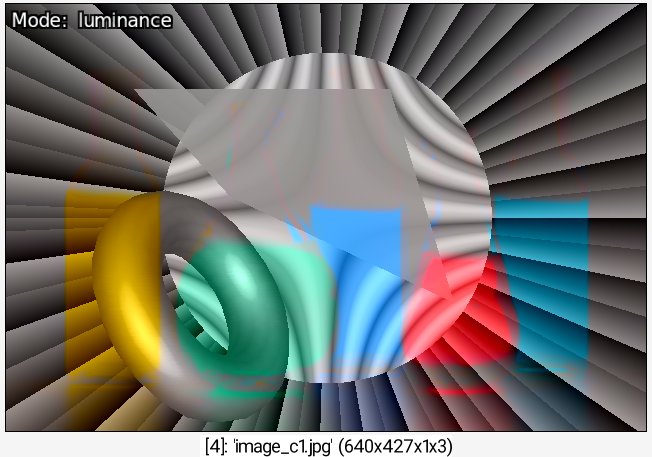

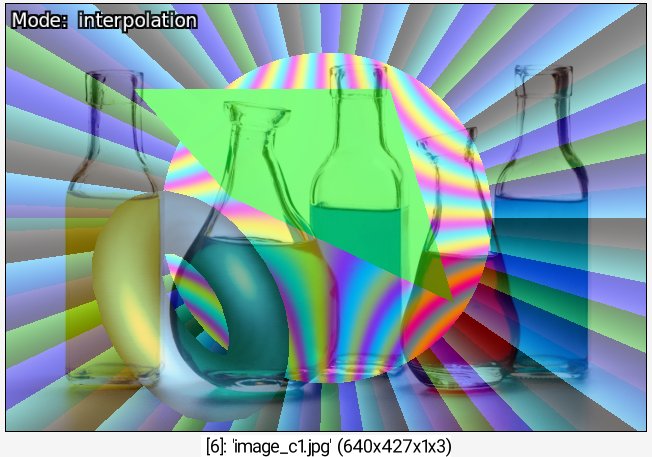

• Example #6

command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay

Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex linearburn,linearlight,luminance,multiply,negation,or,overlay

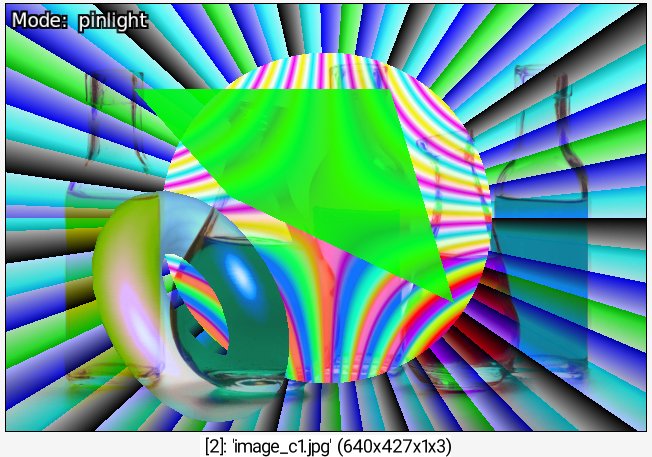

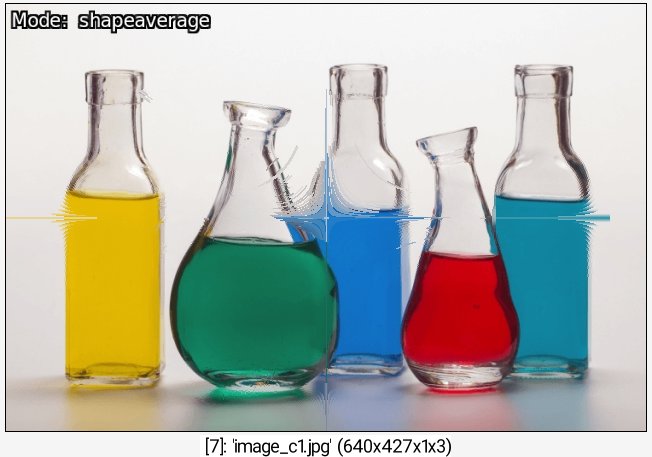

• Example #7

command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn

Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex pinlight,red,reflect,saturation,screen,shapeaverage,softburn

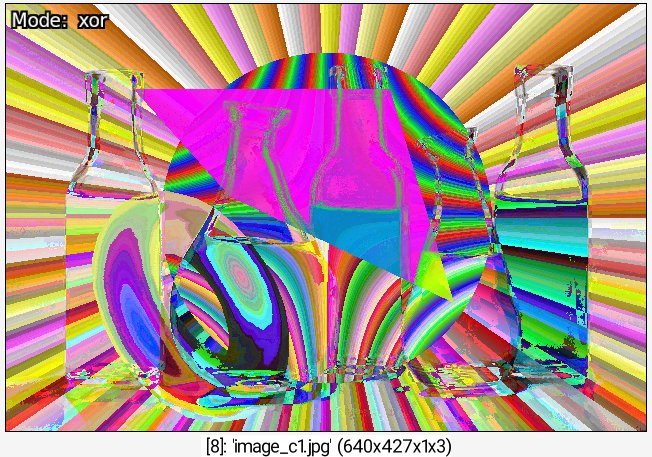

• Example #8

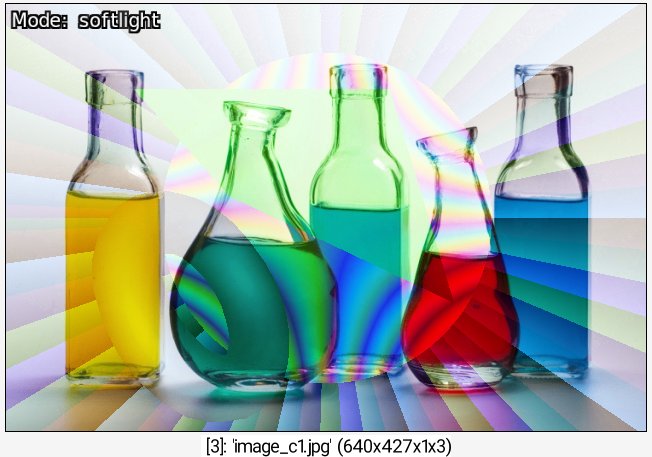

command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor

Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
Command: command "ex : $""=arg repeat $""# +blend[0,1] ${arg{$>+1}} text_outline[-1] Mode:\" \"${arg{$>+1}},2,2,23,2,1,255 done" image.jpg testimage2d {w},{h} ex softdodge,softlight,stamp,subtract,value,vividlight,xor
