extract_region

Arguments:

  • [label_image],_extract_xyz_coordinates={ 0:No | 1:Yes },_label_1,...,_label_M

Description:

Extract all pixels of selected images whose corresponding label in [label_image] is equal to label_m,

and output them as M column images.

Default values:

extract_xyz_coordinates=0.

Example of use:

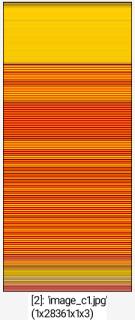

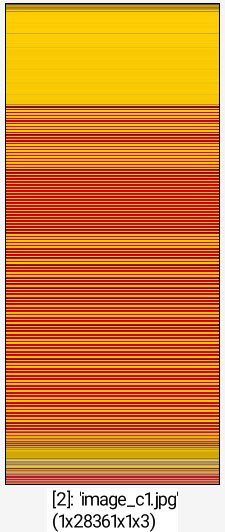

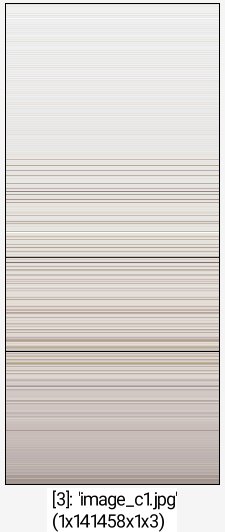

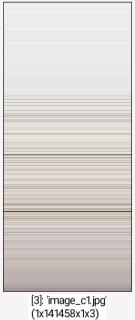

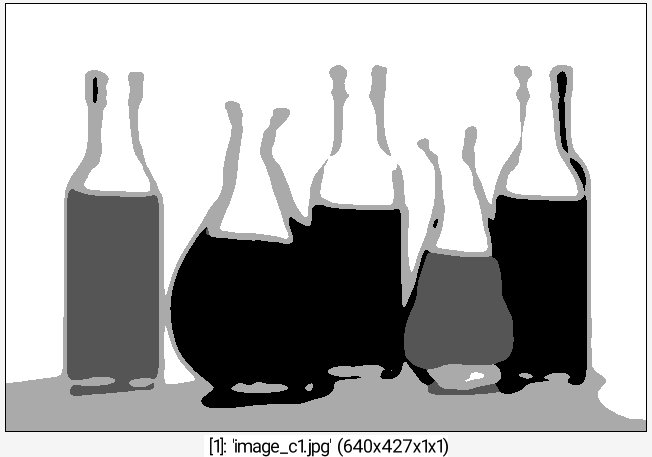

image.jpg +blur 3 quantize. 4,0 +extract_region[0] [1],0,1,3

Command: image.jpg +blur 3 quantize. 4,0 +extract_region[0] [1],0,1,3
Command: image.jpg +blur 3 quantize. 4,0 +extract_region[0] [1],0,1,3
Command: image.jpg +blur 3 quantize. 4,0 +extract_region[0] [1],0,1,3
Command: image.jpg +blur 3 quantize. 4,0 +extract_region[0] [1],0,1,3
