mirror

Built-in command

Arguments:

  • axes={ x | y | z | c }...{ x | y | z | c }

Description:

Mirror selected images along specified axes.


Each character of axes selects an axis along which the image is flipped:
x mirrors the image along the horizontal axis (left/right are swapped).
y mirrors the image along the vertical axis (top/bottom are swapped).
z mirrors the image along the depth axis (front/back slices are swapped, only meaningful for 3D images).
c mirrors the image along the channel axis (channel order is reversed, only meaningful for multi-channel images).

Several axes can be given at once, e.g. xy mirrors along both horizontal and vertical axes.

Examples of use:

• Example #1

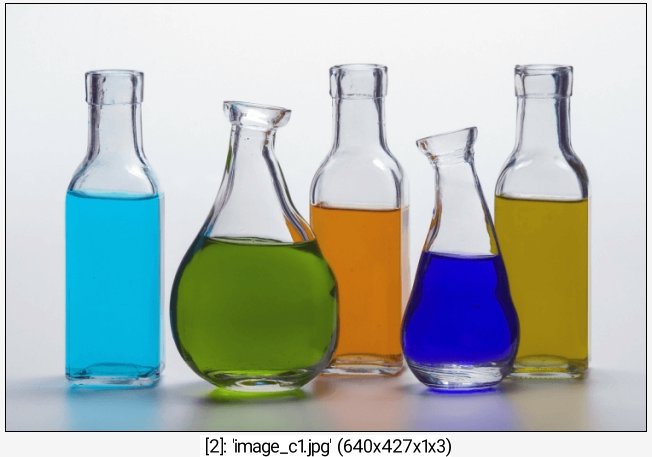

image.jpg +mirror y +mirror[0] c

Command: image.jpg +mirror y +mirror[0] c
Command: image.jpg +mirror y +mirror[0] c
Command: image.jpg +mirror y +mirror[0] c

• Example #2

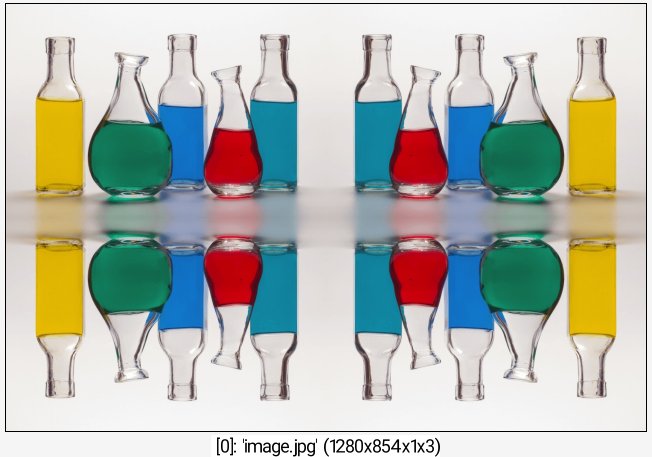

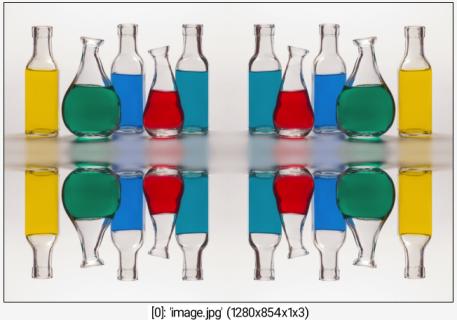

image.jpg +mirror x +mirror y append_tiles 2,2

Command: image.jpg +mirror x +mirror y append_tiles 2,2
