display_polar

Arguments:

• _width>32,_height>32,_outline_type,_fill_R,_fill_G,_fill_B,_theta_start,_theta_end,_xlabel,_ylabel

Description:

Render polar curve from selected image data.

outline_type can be { r<0:dots with radius -r | 0:no outline | r>0:lines+dots with radius r }.
fill_color can be { -1:no fill | R,G,B:fill with specified color }.

Default values:

width=500, height=width, outline_type=1, fill_R=fill_G=fill_B=200, theta_start=0, theta_end=360, xlabel="x-axis" and ylabel="y-axis".

Examples of use:

• Example #1

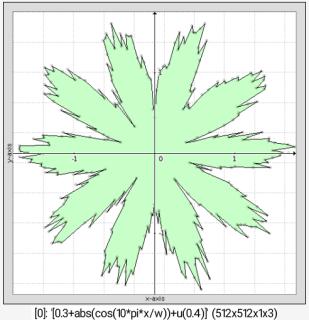

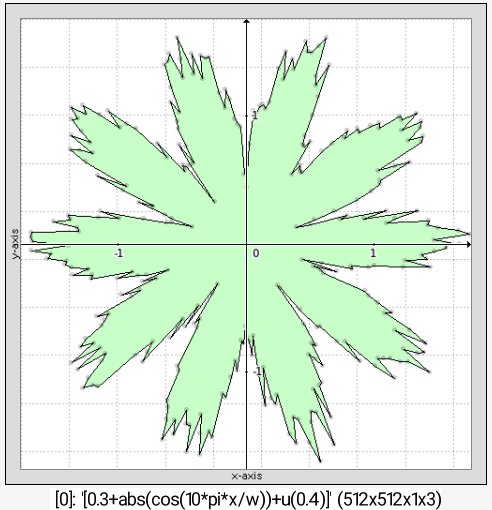

Command: 300,1,1,1,'0.3+abs(cos(10*pi*x/w))+u(0.4)' display_polar 512,512,4,200,255,200

• Example #2

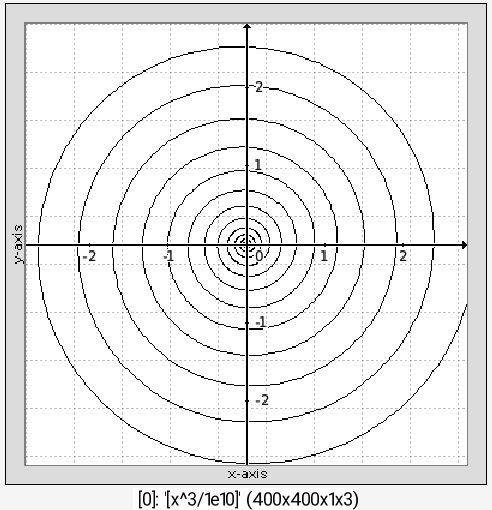

Command: 3000,1,1,1,'x^3/1e10' display_polar 400,400,1,-1,,,0,{15*360}
