#!/usr/bin/env gmic
# File : pacman.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:

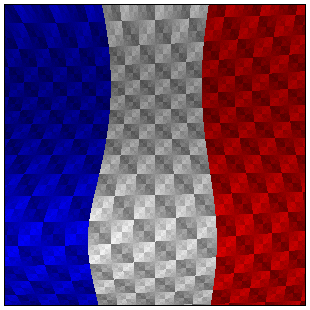

go =>[^] "French Flag" e[] "" animate 30

# Main function
go :
  v 0

  # Render animation frames.
  nbf=200
  repeat $nbf { f=$>
    e[] "
  > Frame "{$f+1}/$nbf
    300,300,1,3,"*
      const f = $f;
      const nbf = $nbf;
      begin(R = rot(10°*sin(f*2*pi/nbf)));
      Z = 80 + 40*cos(x/230 + 2*pi*f/nbf)*sin(y/50 + 3*2*pi*f/nbf);
      P = round(R*(Z + 100)*([x,y] - [w,h]/2)%);
      (0.4+exp(-Z/60))*(P[0]<-96?[0,0,255]:P[0]<96?[255,255,255]:[255,0,0])*
      lerp(0.5,1,xor(P[0]%64,P[1]%64)/64)"
    c. 0,255
  }

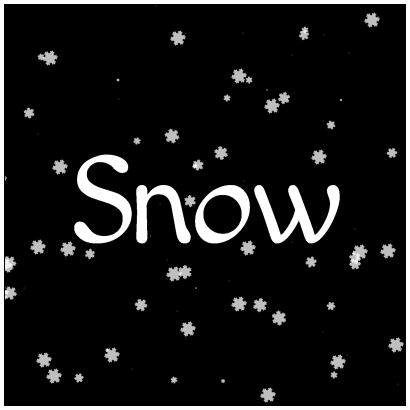

#!/usr/bin/env gmic
# File : heart.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] Snow e[] "" animate 60

# Main function
go :
  v 0

  nbf=400
  shape_snowflake 300 repeat 100 { f:=3+0.5*$> +r[0] $f%,$f%,1,1,2 rotate. {lerp(0,90,$>/10)},1,0 } rm[0]
  a z,0.5 autocrop. r2dx. 16
  l[] { 8,1,1,{3*1000} rand. 0,1 s c,-3 rbf $nbf,0,1 a c }
  repeat $nbf { f=$>
    e[] "
  > Frame "{$f+1}/$nbf
    400,400
    {1,s/3},1,1,1,"
      begin(P = I[#1,"$>"]; S = vector(#w#0*h#0*3,255));
      k3 = 3*x;
      x = P[k3]*w#-1;
      y = P[k3 + 1]*h#-1;
      r = round(lerp(0,d#0 - 1,cut(P[k3 + 2],0,1)));
      M = crop(#0,0,0,r,w#0,h#0,1);
      draw(#-1,S,x,y,0,0,w#0,h#0,1,1,0.75,M);
    " rm.
    to. "Snow",0.5~,0.5~,${"font macondo,150"},3,1,255
  }
  rm[0,1]

# End of file.

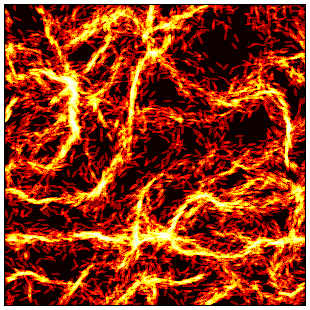

#!/usr/bin/env gmic
# File : fire.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] "Fire" e[] "" animate 60

# Main function
go :
  v 0

  300,300x2 => trail,canvas
  100,100,1,4,"[ u(w#$trail - 1),u(h#$trail - 1),unitnorm([g,g]) ]" => agents
  nbf=200
  repeat $nbf { f=$>
    e[] "
  > Frame "{$f+1}"/"$nbf
    f[canvas] 0
    f[agents] ":begin(
        const no = 5;  # nb_orientations
        const da = 40; # angle
        const sd = 10; # sensor_distance;
        const md = 5;  # move_distance;

        # Pre-compute rotation matrices.
        Rs = vector(#4*no);
        off = 0; repeat (no,k, ang = lerp(-da,da,k/(no - 1)); copy(Rs[off],rot(ang°)); off+=4);
      );

      A = I; X = A[0,2]; U = A[2,2];

      # Get sensor information.
      max_orientation = max_value = -inf;
      repeat (no,k,
        R = Rs[4*k,4];
        sX = round(X + sd*mul(R,U));
        value = i(#$trail,sX,1,2);
        value>max_value?(max_value = value; max_orientation = k);
      );

      # Turn agent according to sensor measure.
      max_orientation = round(max_orientation*(no - 1)/(no - 1));
      R = Rs[4*max_orientation,4];
      U = lerp(U,mul(R,U),0.2);

      # Move agent along new orientation.
      X+=md*U;
      X[0]%=w#$trail;
      X[1]%=h#$trail;
      iX = round(X);

      ++i(#$trail,iX);
      ang = atan2(U[1],U[0]);
      ellipse(#$canvas,iX,4,1,ang,0.2,255);
      [ X,unitnorm(U) ]"

    b[trail] 3,2 deform[trail] 2 n[trail] 0,1
    +map[canvas] hot
  }
  k[80--1]

# End of file.

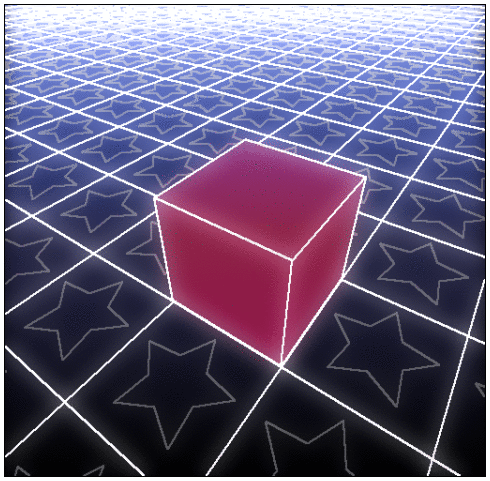

#!/usr/bin/env gmic
# File : cube3d.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] "3D Cube" e[] "" animate 40

# Main function
go :
  v 0

  # Create textured checkerboard (floor) and cube.
  quadrangle3d 0,0,0,0,1,0,1,1,0,1,0,0 col3d. 0 star3d 5,0.5 *3d. 0.4 +3d. 0.5,0.5 col3d. 1 +3d. 0,0,-1e-2
  +col3d.. 2 +col3d.. 3 +3d[-4,-3] +3d[-2,-1] +rv +3d[-3,-1] 1,0,0 +3d[-2,-1] 0,1,0 +3d array3d 16,16 => floor
  box3d 1,1,1 l. { s3d. f.. 6+2*int(y/3) a y } => cube
  (16^32^96;16^16^32;0^0^0) r. 512,512,1,3,3 => background
  18,1,1,3,"x>=4?[64,0,32]:[0,0,0]" => colormap

  # Generate animation.
  nbf,f:=6*16,1 srand 5
  repeat 6 {
    dir:=arg0($>,0,3,0,2,2,0)
    shift:=arg0($dir,[1,0,1],[0,0,1],[1,0,1],[1,1,1])
    axis:=arg0($dir,[0,-1,0],[0,1,0],[-1,0,0],[1,0,0])
    scroll:=arg0($dir,[-1,0,0],[1,0,0],[0,1,0],[0,-1,0])

    repeat $nbf/6 { t:=$>/($>+$<+1)
      e[] "
  > Frame "$f"/"$nbf f+=1
      ang:=lerp(0,90,$t)
      +-3d[cube] $shift r3d. $axis,$ang +3d. $shift # Rotate cube around bottom edge
      +3d. 16,16,-1 +3d. [floor] # Place cube on the floor
      +3d. {$t*[$scroll]} # Scroll floor
      -3d. 16,16,0 *3d. 110 r3d. 0,0,1,35 r3d. 1,0,0,-50 # Rotate whole object to have a nice view
      {background,[w,h]}
      j3d. ..,50%,50%,0,1,2,0,1,400 # Draw object on canvas
      +f. "const boundary=1; M = abs(maxabs(i - j(1),i - j(0,1))); M>1?1:M>0?0.3:0"
      *. 255 dilate. 2 # Render as black & white outline
      map.. [colormap]
      max[-2,-1] max. [background]
      +b. 10,0 n. 0,200 +[-2,-1] c. 0,255
      rows. 10,100% # Remove ugly top part due to 3D perspective
      rs. 480
      rm..
    }
  }
  k[4--1]

# End of file.

#!/usr/bin/env gmic
# File : tunnel3d.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] "Tunnel 3D" e[] "" animate 30

# Main function
go :
  v 0

  # Generate template mesh for the 3D tunnel.
  curve3d 0,0,t,1,64,0,63,16,0 rv3d # Generate a straight bar along z-axis
  s3d eval "i[#1,1]-=32" rows... 0,{-3,h-4*32-1} rows.. 0,{-2,h-3*32-1} rows. 0,{h-32-1} a y # Remove closed extremities
  2,1024,1,3,"x?[255,200,128]:[255,0,0]"
  (0^0^0;0.25^0.25^1;1^1^1;0^0^0)
  2,{-2,h},1,3,"Y = lerp(0,h#-1,(y/h)^0.5); cut(I(#-1,0,Y,0,2),0,1)" rm.. *[-2,-1] # Colors for depth shading

  t3d.. . rm. . => template3d,mesh3d
  +l. { s3d off_p:=8+{2,h} k... r 13,{h/13},1,1,-1 permute zycx } => primitives # Keep editable version of primitives

  # Generate sequence of 3D tunnel centers.
  1,48,1,2,g b. y,4,2 n. -1.5,2 a. .,y => coords
  +g. y b. 1,2 channels. 0,2 sh. 100% f. 1 rm. orientation. => orientations # Desired camera orientations

  # Display animation
  nbf=256 mzi2=-inf
  repeat $nbf { f=$>
    e[] "
  > Frame "{$f+1}"/"$nbf

    z:=16+lerp(0,h#$coords/2,$>/$nbf)
    zi2:=2*int($z/2)
    if $zi2!=$mzi2 # Generate 3D mesh for current tunnel view.
      +z[template3d] 0,8,0,{template3d,8+3*i[6]-1} r. 3,{h/3},1,1,-1 permute. zycx # Extract 3D coordinates
      f. "C = I[#$coords,$zi2 + i2,2]; [ i0 + C[0],i1 + C[1],i2 ]"
      permute. cyzx y. +j[template3d] .,0,8,0,0 rm..
      mzi2:=$zi2
      j[mesh3d] . rm.
    fi

    cx,cy:="I(#$coords,0,$z,0,2,2)"
    u,v,w:="unitnorm(I(#$orientations,0,$z,0,2,2))"
    M:="W = unitnorm(I(#$orientations,0,$z,0,2,2)); V = cross(W,[1,0,0]); U = cross(V,W); 1.5*[ U,V,W ]" # Camera matrix

    +-3d[mesh3d] $cx,$cy,{$z%2}
    apply_matrix3d. $M
    r3d. 0,0,1,{180*cos(2*pi*$>/$nbf)}

    # Add depth effect.
    f[primitives] "
      P = I;
      z = int(y/16);
      P[5] = P[7] = P[9] = P[11] = xor(z,y)%2;
      P[6] = 16*i[#-1,8+3*i1+2];
      P[8] = 16*i[#-1,8+3*i2+2];
      P[10] = 16*i[#-1,8+3*i3+2];
      P[12] = 16*i[#-1,8+3*i4+2];
      P"
    +permute[primitives] cyzx y. j.. .,0,$off_p rm.

    # Render frame.
    600,600,1,3
    j3d. ..,50%,50%,-500,1,2,0,0,500 rm..
  }
  k[5--1] rs 320 a z n 0,255 s z

# End of file.

#!/usr/bin/env gmic
# File : morphshape.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] "Morph Shape" e[] "" animate 30

# Main function
go :
  v 0

  shape_cupid 500 # Source shape
  shape_dragonfly 500 # Target shape
  ge 50% r 512,512,1,1,0,0,0.5,0.5

  # Extract contour parameterizations of largest components.
  foreach { edgels -1 k[{argmax(${"-lof h"})}] channels. 0,1 f. "I==J[-1]?[-1,-1]:I" discard. -1 r. 1,50%,1,2,-1 }
  r 1,${-max_h},1,2,1 1,32,1,1,y%4 r. 1,{-2,h} a[-3,-2] .,c rm.
  => source,target
  512,512,1,3,"lerp([0,64,0],[0,32,128],y/h)" => background
  (0^0^0^0,255^255^255^255,255^0^0^255,255^128^0^255,255^255^0^255) => colormap

  # Perform curve interpolation.
  repeat 50 {
    k:=cut(lerp(-0.15,1.15,$%),0,1)
    [source] sh. 0,1 b. y,{lerp(0,100,$k)},2 rm.
    [target] sh. 0,1 b. y,{lerp(100,0,$k)},2 rm.
    j.. .,0,0,0,0,$k rm.
    {background,[w,h]} eval.. "pP = J[-1,2]; polygon(#-1,2,pP[0],pP[1],i0,i1,1,i2 + 1)"
    dilate. 3 map. [colormap] +ja[background] .
    rm[-3,-2]
  }
  rm[source,target,background,colormap]
  +rv

# End of file.

#!/usr/bin/env gmic

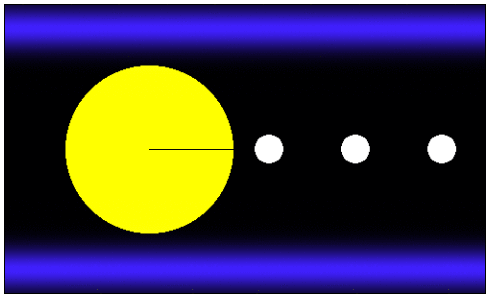

# File : pacman.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] Pacman e[] "" animate 60

# Main function
go :
  v 0

  # Create background image = [0].
  500,300,1,3
  line 0,8%,100%,8%,1,1
  line 0,92%,100%,92%,1,1
  blur y,5%,1 * '[64,32,255]' normalize 0,255

  # Create image of pellets = [1].
  shape_circle 30
  resize. 300%,100%,1,1,0,0,0.5 W:=w
  resize. ..,100%,1,1,0,2

  # Create colormap = [2].
  (0,0,0;255,255,255;255,255,0) permute. yzcx

  nbf=20
  repeat $nbf { f=$>
    e[] "
  > Frame "{$f+1}/$nbf
    [0],[0] circle. 30%,50%,15%,1,2
    y:=h/2-2*h*($f<$nbf/2?$f:$nbf-$f)/$nbf
    polygon. 3,30%,50%,100%,$y,100%,{h-$y}
    +fill. 0 image. [1],{w/10+2*$W*(1-$f/$nbf)},{(h-h#1)/2}
    max[-2,-1] map. [2] max. [0]
  }
  remove[0-2]

# End of file.

#!/usr/bin/env gmic

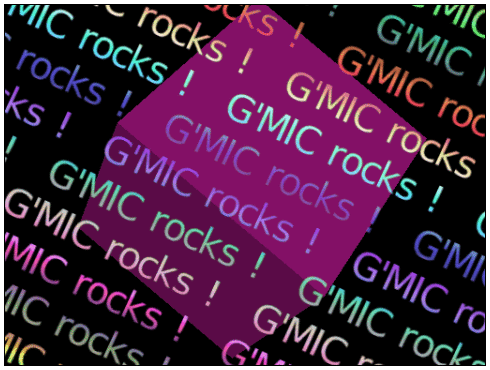

# File : scrolling.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] Scrolling e[] "" animate 50

# Main function
go :
  v 0
  srand 32

  # Define rendering sizes.
  wf,hf=512,384
  wr,hr:=round(1.5*[$wf,$hf])

  # Generate image [0] = line of text.
  input 0 text "G'MIC rocks !   ",0,0,48,1,1 wt,ht:=[w,h] resize {2.5*$wr},100%,1,1,0,2

  # Generate image [1] = color gradient.
  input {10*ceil($hr/$ht)},1,1,3,u(64,255) tsp. , transpose. resize. $wr,$hr,1,3,3

  # Generate image [2] = 3d cube (3d object).
  box3d {$wr/3} color3d. 255,32,200 center3d.

  # Generate animation frames.
  nbf=50
  repeat $nbf { f=$>
    e[] "
  > Frame "{$f+1}/$nbf
    input $wr,$hr,1,1
    repeat ceil($hr/$ht) {
      image. [0],{w/5*cos($>/3+2*pi*$f/$nbf)-$wt*(1+$f/$nbf)},{$>*$ht}
    }
    +mul[1,-1] remove..
    rotate. 25,1,0
    resize. $wf,$hf,1,100%,0,0,0.5,0.5
    +fill. 0
    +rotate3d[2] 1,-1,0,{180*$f/$nbf} rotate3d. 0,1,0,{360*$f/$nbf} rotate3d. 1,2,3,-60
    object3d.. .,50%,50%,100,1,3,0,0
    remove. div. 1.6 max[-2,-1]
  }
  keep[3--1]

# End of file.

#!/usr/bin/env gmic

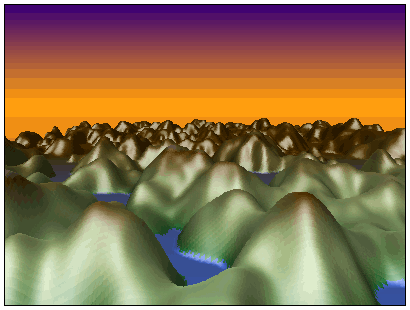

# File : landscape.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] Landscape e[] "" animate 60

# Main function
go :
  v 0
  srand 512

  # Generate elevation map [0] and texture [1]
  input 512,480 plasma. 1,1,5 resize. 100%,400%,1,1,0,2 blur. 3 cut. 40%,inf normalize. 0,255
  input (0,102,51;149,175,124;102,42,0;255,255,255) permute. yzcx srgb2rgb. resize. 256,1,1,3,3 rgb2srgb.
  point. 0,0,0,1,64,100,200 +map.. . rm.. normalize[0] 0,40

  # Generate background image [2].
  input 1,4,1,3,"y==0?[50,0,100]:y==1?[219,140,15]:y==2?[140,18,15]:[100,0,0]" resize. 400,300,1,3,3

  # Generate frames
  nbf=50
  repeat $nbf { f=$>
    e[] "
  > Frame "{$f+1}/$nbf
    y:=h#0/4*(1+$f/$nbf)
    ang:=6*sin(2*pi*$f/$nbf)
    +rows[0,1] $y,{$y+h#0/3-1} w,h={[w,h]}
    rotate[-2,-1] $ang,1,0,50%,50%

    +fill.. 'y/h' cut. 5%,50% normalize. 0,1
    input 100%,100%,1,3,'[219,140,15]/3' image... .,0,0,0,0,1,.. remove[-2,-1]

    elevation3d. .. remove.. reverse3d.
    -3d. {$w/2},0,0 r3d. 1,0,0,90 +3d. 0,50,0 *3d. {-2,4*w/$w}
    +object3d[2] .,50%,35%,-250,1,5,0,1,300,0,-1000,-2200,0.3,0.5 remove..
  }
  remove[0-2]

  # Quantize all frames in 256 colors with the same colormap, to avoid .gif flickering.
  +colormap[50%] 256 index[^-1] .,0,1 remove.

# End of file.

#!/usr/bin/env gmic
# File : mandelbrot.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] "Mandelbrot" e[] "" animate 60

# Main function
go :
  v 0

  # Create colormap.
  srand 0
  input 256,1,1,3,u(255)
  tsp. ,
  point. 0

  # Generate frame.
  target=-0.77175402641296387,0.10690001025795937
  zoom=1e-2
  nbf=100
  repeat $nbf { f=$>
    e[] "
  > Frame "{$f+1}"/"$nbf
    input 512,512
    iter_max:=round(lerp(512,16384,$%^4))
    mandelbrot. {"C = ["$target"]; z = "$zoom"; [C - z, C + z ]"},$iter_max
    map. [0] rotate. {180*cos(pi*$f/$nbf)},2,0,50%,50%
    cut. 0,255
    resize. 256,192,1,3,0,0,0.5,0.5
    zoom*=0.93
  }
  remove[0]

  # Make frames loop, using temporal fading.
  append z
  +slices. 0,10%
  input 100%,100%,100%,1,'z/d'
  image[0] ..,0,0,{d#0-d#2},0,1,.
  slices[0] {d#2},100%
  keep[0]
  split z

# End of file.

#!/usr/bin/env gmic

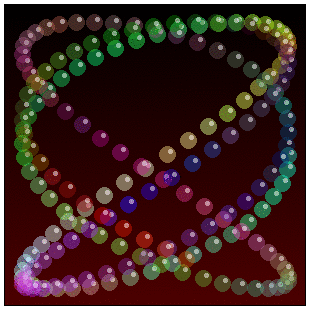

# File : lissajous.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] Lissajous e[] "" animate 60

# Main function
go :
  v 0
  300,1,1,3,u(255) tsp , # Generate random smooth colormap
  repeat 60 {
    e[] "
  > Frame "{$>+1}/60
    (0^0^0;64) resize. 300,300,1,3,3 # Generate background image
    eval "
      const dt = "$>"*0.005;
      for (t = b = 0, t<3*pi, t+=0.05, # Draw balls
        x = w/2 + 4*w/9*cos((3.2+3*dt)*(t + dt));
        y = h/2 + 4*h/9*sin((2.1-2*dt)*(t + dt));
        ellipse(x,y,8,8,0,0.4,I[#0,b++]);
        ellipse(x+3,y-3,2,2,0,0.4,255);
      );
    "
    wait 20
  } rm[0]

# End of file.

#!/usr/bin/env gmic

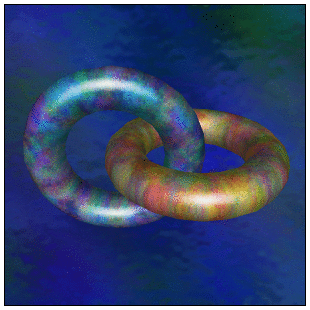

# File : torus3d.gmic
# Author : David Tschumperle

# Entry point when run from CLI:
go =>[^] "Torus 3D" e[] "" animate 60

# Main function
go :
  v 0

  # Create 3d textured double-torus object.
  srand 16
  repeat 2 {
    torus3d 70,20 100,100,1,3
    plasma. 1,1,3 normalize. 0,255 equalize. 256  # Generate plasma texture
    +fill_color. ${-RGB} image.. .,0,0,0,0,0.6     # Tint it a little bit with a random color
    texturize3d... ..
    remove[-2,-1]
  }
  rotate3d. 1,0,0,90 +3d. 80,0,0  # Shift and merge torii
  +3d center3d rotate3d 1,0,0,30 *3d 2

  # Create background image.
  600,600,1,3 plasma. 1,1 normalize. 0,255 *. '[0.2,0.3,0.7]'

  # Generate animation frames.
  repeat 45 {
    e[] "
  > Frame "{$>+1}/45
    +water[1] 100
    object3d. [0],50%,50%,0,1,5,0
    rotate3d[0] 1,2,3,8
  }

  remove[0,1]  # Remove 3d object + background
  r2dx 50%     # Anti-alias frames

# End of file.

#!/usr/bin/env gmic

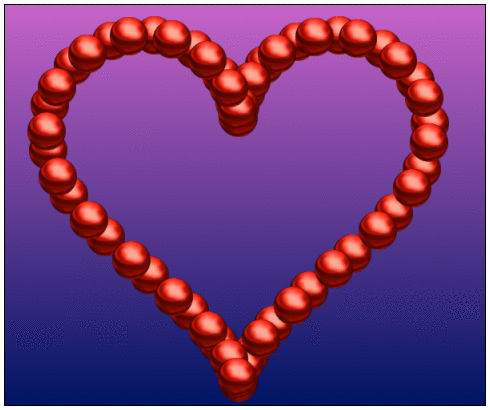

# File : heart.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go =>[^] Heart e[] "" animate 60

# Main function
go :
  chromeball64x64 255,20,0 resize2dx. 48
  split c,-3
  600,500,1,3,"(y*[0,20,100]+(h-y)*[200,100,200])/h" .x9
  eval "
    S = crop(#0);
    A = crop(#1);
    for (t = -pi; f = 0, t<3*pi, t+=0.02,
      P = 268-15*[16*(sin(t)^3),13*cos(t)-5*cos(2*t)-2*cos(3*t)-cos(4*t)+5];
      draw(#2+f,S,P[0],P[1],48,48,1,A,255);
      f = (f+1)%10;
    )"
  remove[0,1]

# End of file.

#!/usr/bin/env gmic
# File : distortion.gmic
# Author : David Tschumperle

# Entry point when run from CLI:
go =>[^] Distortion e[] "" animate 50

# Main function
go :
  v 0
  nbf=50
  sample cat
  repeat $nbf {
    e[] "
  > Frame "{$>+1}/$nbf
    +f[0] "const boundary = 3;
           const interpolation = 1;
           j( w/16*cos(2*pi*"$>/$nbf" + 0.5*sin(y/50)),
              h/16*sin(2*pi*"$>/$nbf" + 0.5*cos(x/30)))"
  }
  remove[0]

# End of file.

#!/usr/bin/env gmic
# File : rotozoom.gmic
# Author : David Tschumperle

# Entrypoint when run from CLI:
go r2dx 200%,1 =>[^] Rotozoom e[] "" animate 70

# Main function
go :
  v 0
  nbf=70
  sp colorful

  repeat $nbf {
    e[] "
  > Frame "{1+$>}"/"$nbf
    240,240,1,3,"
      const boundary = 2;
      const interpolation = 1;
      const t = "$>/$nbf";
      const pit2 = 2*pi*t;

      dx = 4*w#0*t;
      dy = 3*h#0*t;
      zoom = 0.35 + 0.3*sin(pit2);
      angle = pit2*180/pi;
      rot = rot(angle°)/zoom;

      P = [ w#0,h#0 ]/2 + [ dx,dy ] + rot*[ x - w/2,y -h/2 ];
      i(#0,P)"
  }
  rm[0]

# End of file.
