thickspline

Arguments:

x0[%],y0[%],u0[%],v0[%],x1[%],y1[%],u1[%],v1[%],_thickness,_opacity,_color1,...

Description:

Draw specified colored thick spline curve on selected images (cubic hermite spline).

Default values:

thickness=3, opacity=1 and color1=0.

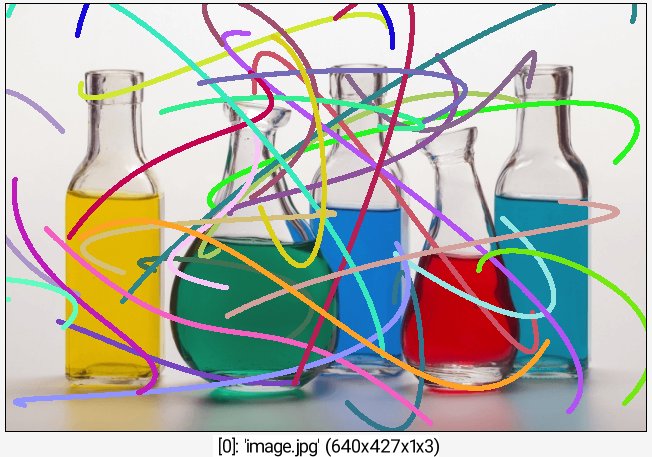

Example of use:

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> repeat 30 { thickspline {u(100)}%,{u(100)}%,{u(-600,600)},{u(-600,600)},{u(100)}%,{u(100)}%,{u(-600,600)},{u(-600,600)},3,1,${-rgb} }

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> repeat 30 { thickspline {u(100)}%,{u(100)}%,{u(-600,600)},{u(-600,600)},{u(100)}%,{u(100)}%,{u(-600,600)},{u(-600,600)},3,1,${-rgb} }
