thickpolygon

Arguments:

• N>=1,x1[%],y1[%],...,xN[%],yN[%],_thickness>=0,_opacity,_color1,...    or
• [coords],_thickness>=0,_opacity,_color1,...

Description:

Draw specified colored thick outlined N-vertices polygon on selected images.

If thickness<0, the command draws an open polygon rather than a closed polygon.

Default values:

thickness=3, opacity=1, and color1=0.

Examples of use:

• Example #1

Command: image.jpg thickpolygon 4,20%,20%,80%,30%,80%,70%,20%,80%,5,1,0,255,0

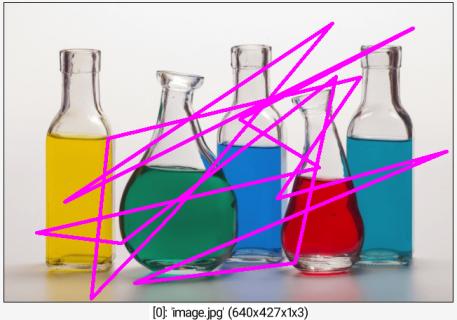

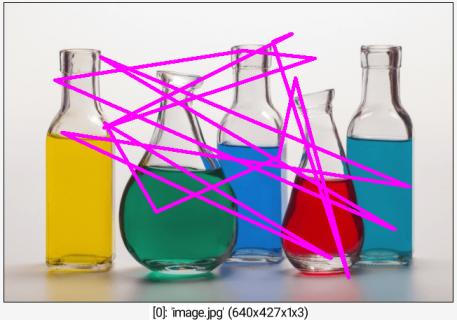

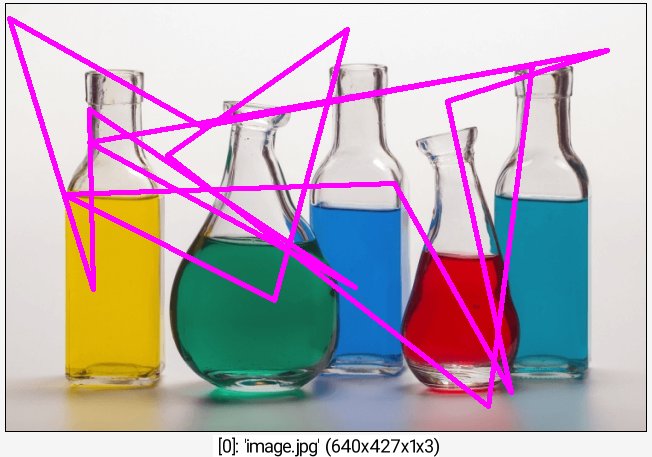

• Example #2

Command: image.jpg 2,16,1,1,'u(x?h#0:w#0)' thickpolygon[-2] [-1],5,1,255,0,255 remove[-1]
