isoline3d

Built-in command

Arguments:

• isovalue[%]    or
• 'formula',value,_x0,_y0,_x1,_y1,_size_x[%]>0,_size_y[%]>0

Description:

Extract 3D isolines with specified value from selected images or from specified formula.

Default values:

x0=y0=-3, x1=y1=3 and size_x=size_y=256.

Examples of use:

• Example #1

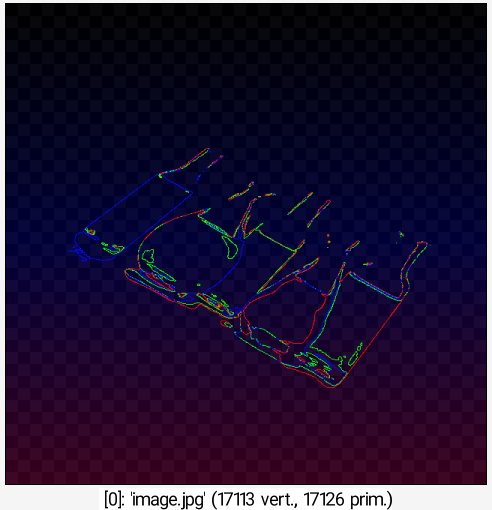

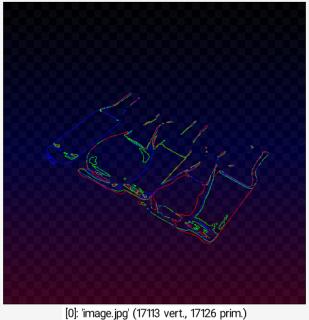

Command: image.jpg blur 1 isoline3d 50%

• Example #2

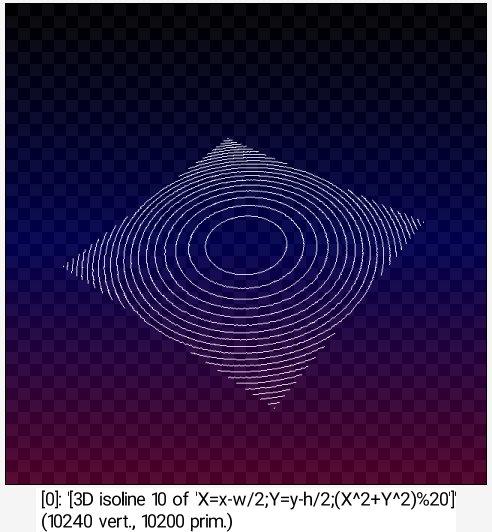

Command: isoline3d 'X=x-w/2;Y=y-h/2;(X^2+Y^2)%20',10,-10,-10,10,10
