hessian

Arguments:

• { xx | xy | xz | yy | yz | zz }...{ xx | xy | xz | yy | yz | zz },_boundary_conditions    or
• (no arg) :

Description:

Compute the hessian components (second derivatives) of selected images along specified axes.

boundary_conditions can be { 0:Dirichlet | 1:Neumann | 2:Periodic | 3:Mirror }.
(no arg) compute all significant components.

Default values:

boundary_conditions=1.

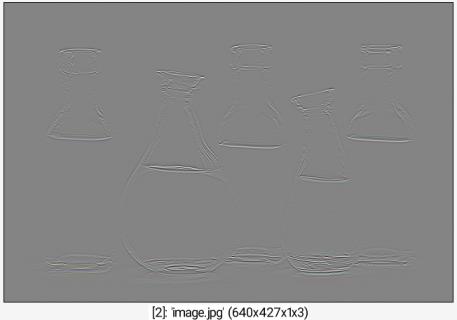

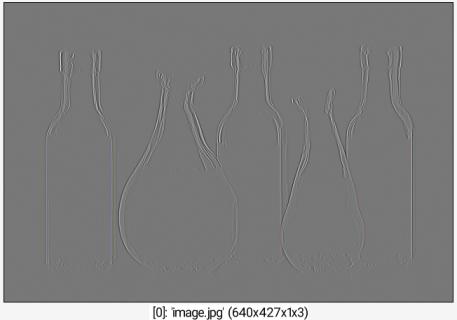

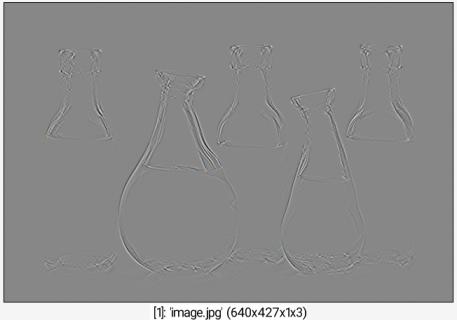

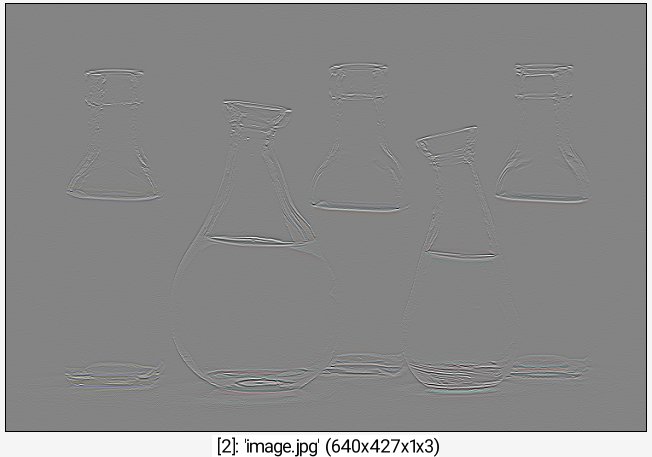

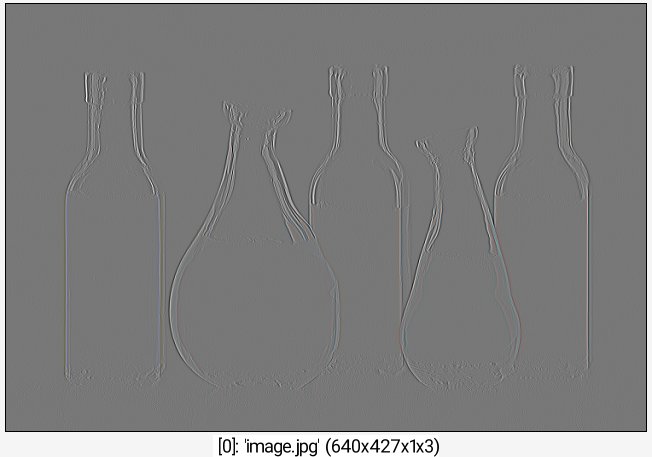

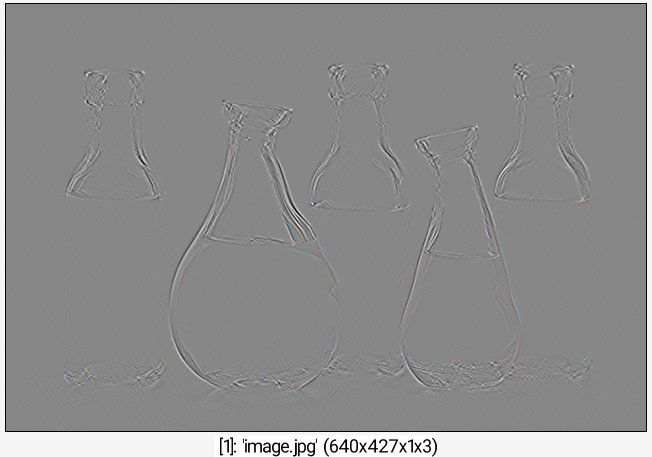

Example of use:
