focal3d

Arguments:

  • focal

Description:

Set 3D focal.

(equivalent to shortcut command f3d).


Set focal to 0 to enable parallel projection (instead of perspective).
Set negative focal will disable 3D sprite zooming.

Default values:

focal=700.

Example of use:

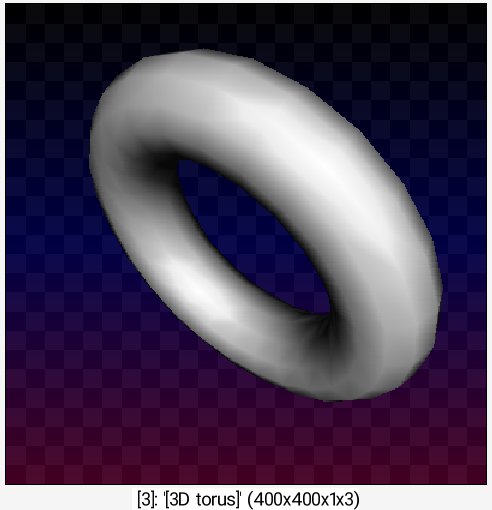

repeat 5 { torus3d 100,30 rotate3d[-1] 1,1,0,60 focal3d {$<*90} snapshot3d[-1] 400 } remove[0]

Command: repeat 5 { torus3d 100,30 rotate3d[-1] 1,1,0,60 focal3d {$<*90} snapshot3d[-1] 400 } remove[0]
Command: repeat 5 { torus3d 100,30 rotate3d[-1] 1,1,0,60 focal3d {$<*90} snapshot3d[-1] 400 } remove[0]
Command: repeat 5 { torus3d 100,30 rotate3d[-1] 1,1,0,60 focal3d {$<*90} snapshot3d[-1] 400 } remove[0]
Command: repeat 5 { torus3d 100,30 rotate3d[-1] 1,1,0,60 focal3d {$<*90} snapshot3d[-1] 400 } remove[0]
