deriche

Built-in command

Arguments:

• std_deviation[%]>=0,order={ 0 | 1 | 2 },axis={ x | y | z | c },_boundary_conditions

Description:

Apply Deriche recursive filter on selected images, along specified axis and with

specified standard deviation, order and boundary conditions.
boundary_conditions can be { 0:Dirichlet | 1:Neumann | 2:Periodic | 3:Mirror }.

Default values:

boundary_conditions=1.

This command has a tutorial page.

Examples of use:

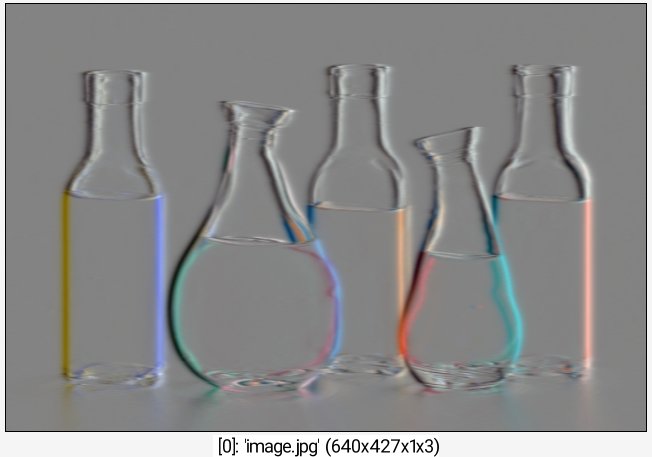

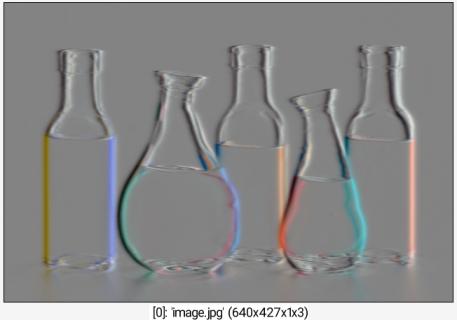

• Example #1

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> deriche 3,1,x

• Example #2

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +deriche 30,0,x deriche[-2] 30,0,y add
