Reference
Table of Contents  ▸  List of Commands  ▸  Filtering  ▸  dilate◀  deriche    |    dilate_circ  ▶

dilate

Built-in command

Arguments:

  • size[%]>=0    or
  • size_x[%]>=0,size_y[%]>=0,size_z[%]>=0    or
  • [kernel],_boundary_conditions,_is_real={ 0:Binary-mode | 1:Real-mode }

Description:

Dilate selected images by a rectangular or the specified structuring element.

boundary_conditions can be { 0:Dirichlet | 1:Neumann | 2:Periodic | 3:Mirror }.

Default values:

size_z=1, boundary_conditions=1 and is_real=0.

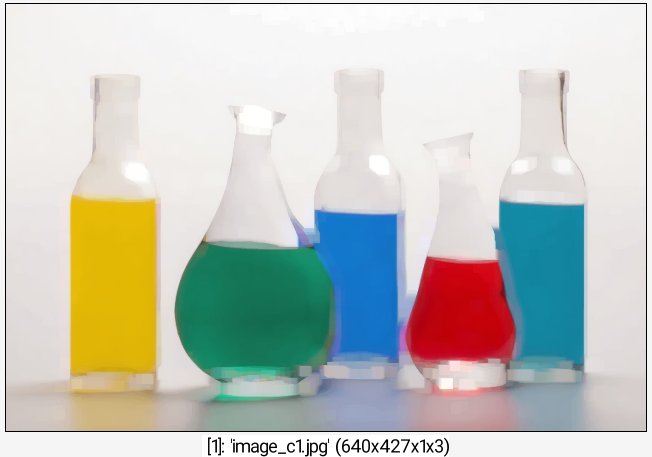

Example of use:

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +dilate 10

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +dilate 10
Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +dilate 10
