thickellipse

Arguments:

• x[%],y[%],R[%],r[%],_angle,_thickness>=0,_opacity,_color1,...

Description:

Draw specified colored thick outlined ellipse on selected images.

Default values:

thickness=3, opacity=1 and color1=0.

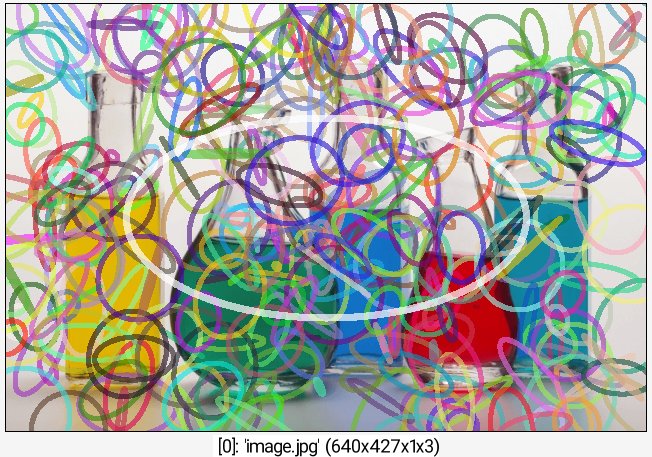

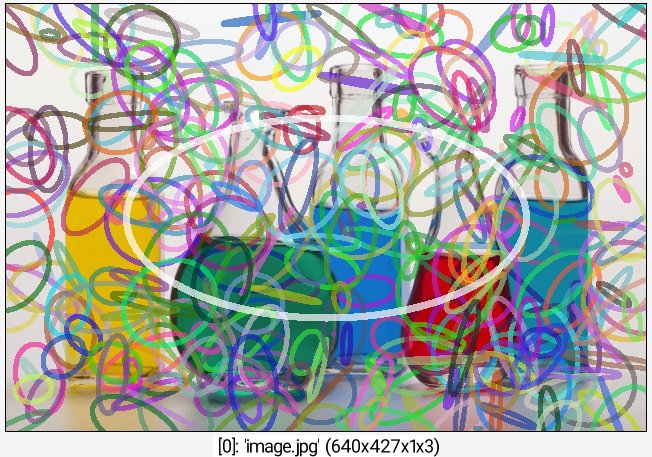

Example of use:

Command: image.jpg repeat 300 thickellipse {u(100)}%,{u(100)}%,{u(50)},{u(50)},{u(180)},3,0.6,${-rgb} done thickellipse 50%,50%,200,100,0,5,0.7,255
