sub

Built-in command

Arguments:

  • value[%]    or
  • [image]    or
  • 'formula'    or
  • (no arg)

Description:

Subtract specified value, image or mathematical expression to selected images, or compute the pointwise difference of selected images.

(equivalent to shortcut command -).

Examples of use:

• Example #1

image.jpg +sub 30% cut 0,255

Command: image.jpg +sub 30% cut 0,255
Command: image.jpg +sub 30% cut 0,255

• Example #2

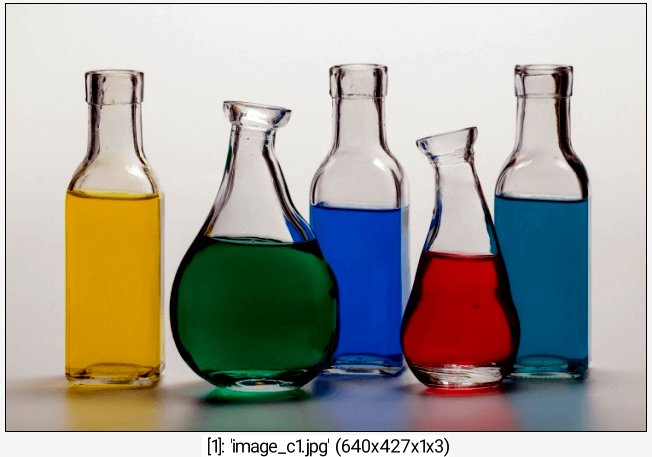

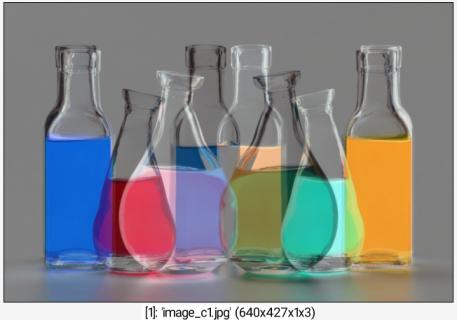

image.jpg +mirror x sub[-1] [0]

Command: image.jpg +mirror x sub[-1] [0]
Command: image.jpg +mirror x sub[-1] [0]

• Example #3

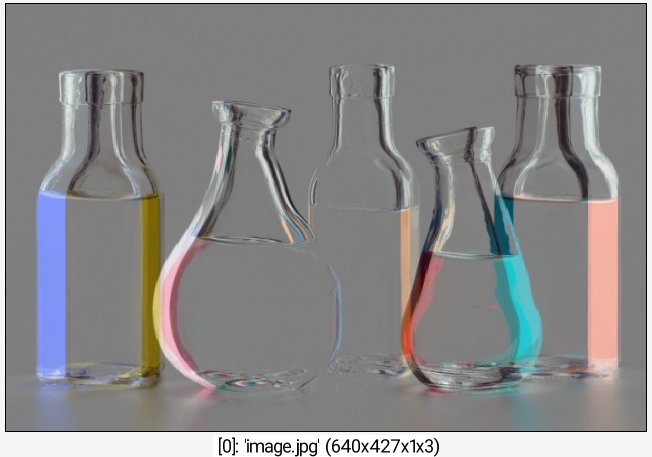

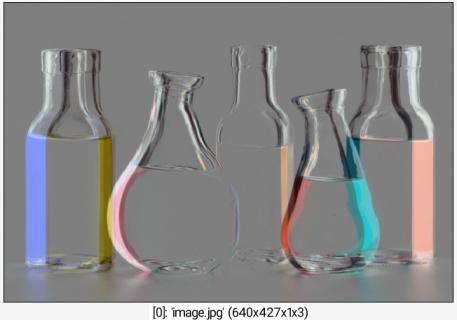

image.jpg sub 'i(w/2+0.9*(x-w/2),y)'

Command: image.jpg sub 'i(w/2+0.9*(x-w/2),y)'

• Example #4

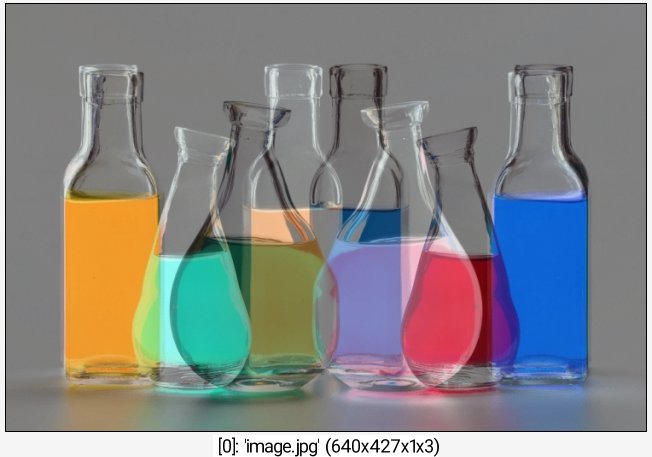

image.jpg +mirror x sub

Command: image.jpg +mirror x sub
