spline3d

Arguments:

  • x0[%],y0[%],z0[%],u0[%],v0[%],w0[%],x1[%],y1[%],z1[%],u1[%],v1[%],w1[%],_nb_vertices>=2

Description:

Input 3D spline with specified geometry.

Default values:

nb_vertices=128.

Example of use:

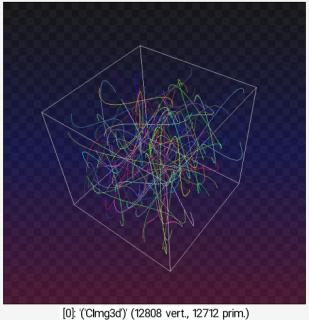

repeat 100 { spline3d {u},{u},{u},{u},{u},{u},{u},{u},{u},{u},{u},{u},128 color3d[-1] ${-rgb} } box3d 1 primitives3d[-1] 1 add3d

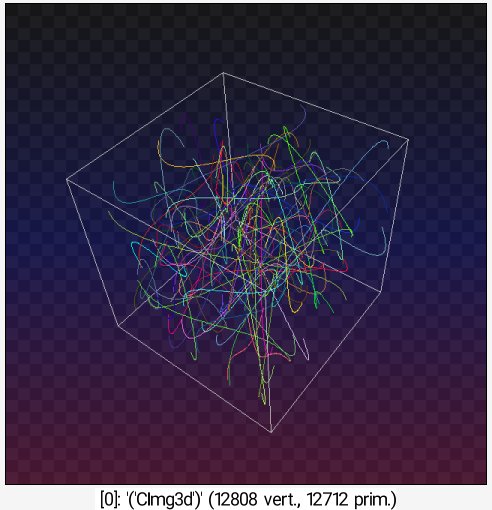

Command: repeat 100 { spline3d {u},{u},{u},{u},{u},{u},{u},{u},{u},{u},{u},{u},128 color3d[-1] ${-rgb} } box3d 1 primitives3d[-1] 1 add3d
