patches2img

Arguments:

• width>0,height>0,_overlap[%]>0,_overlap_std[%]

Description:

Recompose 2D images from their selected patch representations.

overlap must be in range [0,patch_size-1] where patch_size is the width/height of the selected image.
overlap_std is the standard deviation of the gaussian weights used for reconstructing overlapping patches.
If overlap_std is set to -1, uniform weights are used rather than gaussian.

Default values:

overlap=0 and overlap_std=-1.

See also:

img2patches.

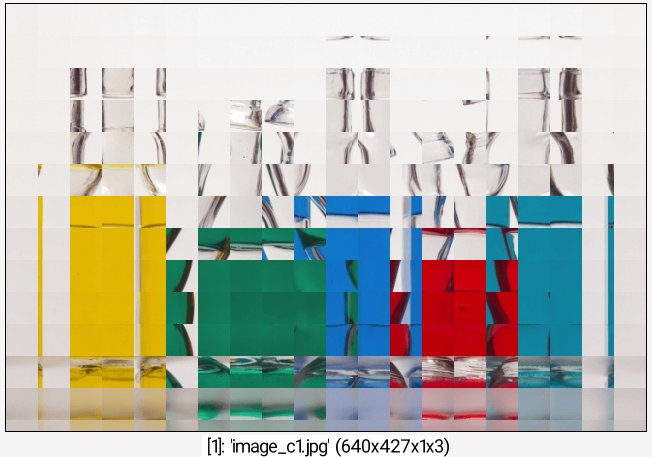

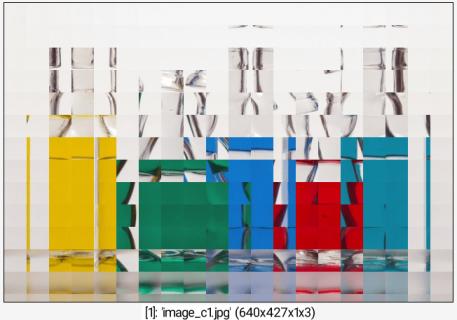

Example of use:
