ellipse

Built-in command

Arguments:

Description:

Draw specified colored ellipse on selected images.

A radius of 100% stands for sqrt(width^2+height^2).
pattern is an hexadecimal number starting with 0x which can be omitted
even if a color is specified. If a pattern is specified, the ellipse is
drawn outlined instead of filled.

Default values:

opacity=1, pattern=(undefined) and color1=0.

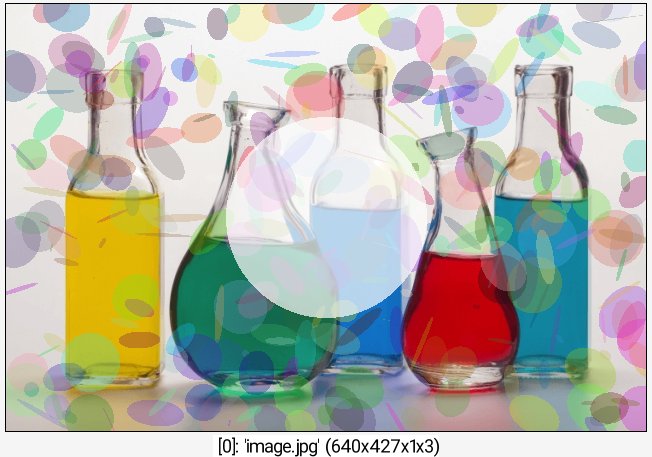

Example of use:

image.jpg repeat 300 ellipse {u(100)}%,{u(100)}%,{u(30)},{u(30)},{u(180)},0.3,${-rgb} done ellipse 50%,50%,100,100,0,0.7,255

Command: image.jpg repeat 300 ellipse {u(100)}%,{u(100)}%,{u(30)},{u(30)},{u(180)},0.3,${-rgb} done ellipse 50%,50%,100,100,0,0.7,255
