curve3d

Arguments:

• _"x(t)",_"y(t)",_"z(t)",_"r(t)",_resolution>1,_tmin,_tmax,_nb_sides>=0,_cap_style={ 0:Open | 1    or
• Capped | 2    or
• Closed }

Description:

Input 3D curve with specified parameterization.

If r(t)==0 or nb_sides<3, the generated 3D object is composed of segments only.

Default values:

x(t)=cos(2*pi*t), y(t)=sin(2*pi*t), z(t)=t, r(t)=0.025, resolution=128, tmin=0, tmax=1, nb_sides=16 and cap_style=1.

Example of use:

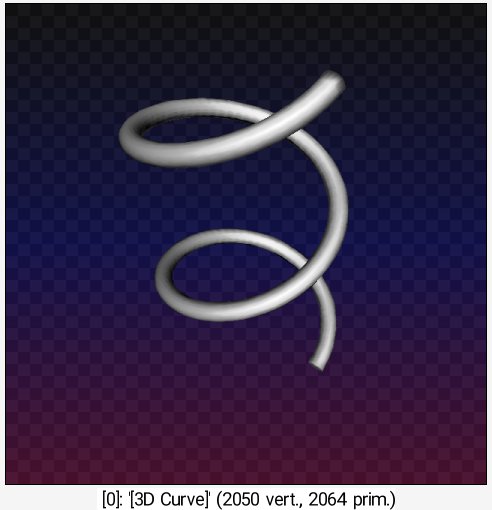

Command: curve3d ,
