channels

Arguments:

• c0[%],_c1[%],_boundary_conditions

Description:

Keep only specified channels of selected images.

boundary_conditions can be { 0:Dirichlet | 1:Neumann | 2:Periodic | 3:Mirror }.

Default values:

c1=c0 and boundary_conditions=0.

Examples of use:

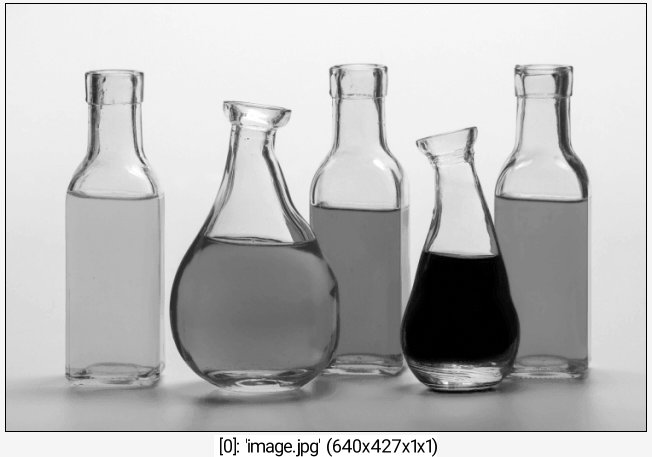

• Example #1

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> channels 1

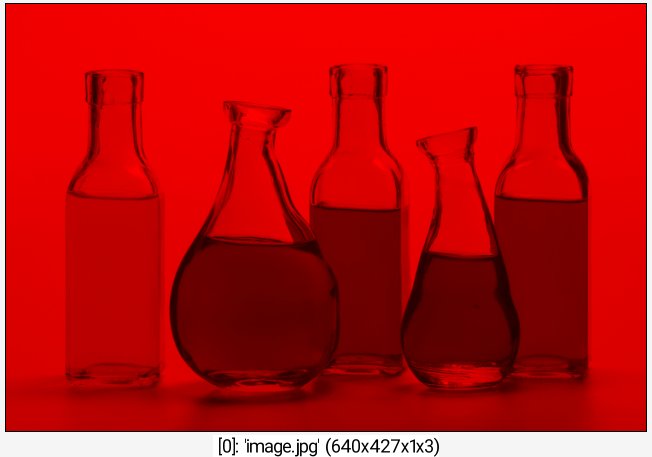

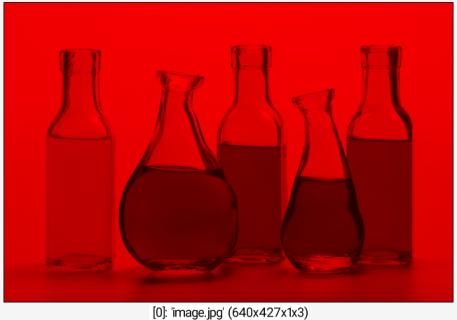

• Example #2

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> luminance channels 0,2
