at_quadrangle

Arguments:

  • x0[%],y0[%],x1[%],y1[%],x2[%],y2[%],x3[%],y3[%],_interpolation,_boundary_conditions    or
  • x0[%],y0[%],z0[%],x1[%],y1[%],z1[%],x2[%],y2[%],z2[%],x3[%],y3[%],z3[%],_interpolation,_boundary_conditions

Description:

Retrieve pixels of the selected images belonging to the specified 2D or 3D quadrangle.

interpolation can be { 0:Nearest-neighbor | 1:Linear | 2:Cubic }.
boundary_conditions can be { 0:Dirichlet | 1:Neumann | 2:Periodic | 3:Mirror }.

Example of use:

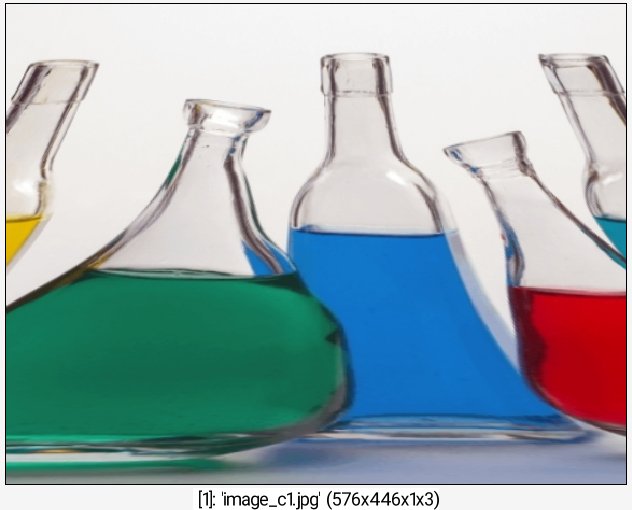

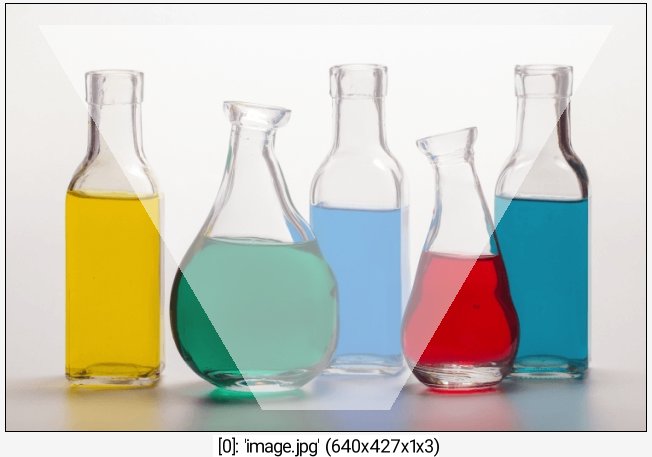

image.jpg params=5%,5%,95%,5%,60%,95%,40%,95% +at_quadrangle $params polygon.. 4,$params,0.5,255

Command: image.jpg params=5%,5%,95%,5%,60%,95%,40%,95% +at_quadrangle $params polygon.. 4,$params,0.5,255
Command: image.jpg params=5%,5%,95%,5%,60%,95%,40%,95% +at_quadrangle $params polygon.. 4,$params,0.5,255
