append

Built-in command

Arguments:

[image],axis,_centering or
axis,_centering

Description:

Append specified image to selected images, or all selected images together, along specified axis.

(equivalent to shortcut command a).

axis can be { x | y | z | c }.
Usual centering values are { 0:left-justified | 0.5:centered | 1:right-justified }.

Default values:

centering=0.

Examples of use:

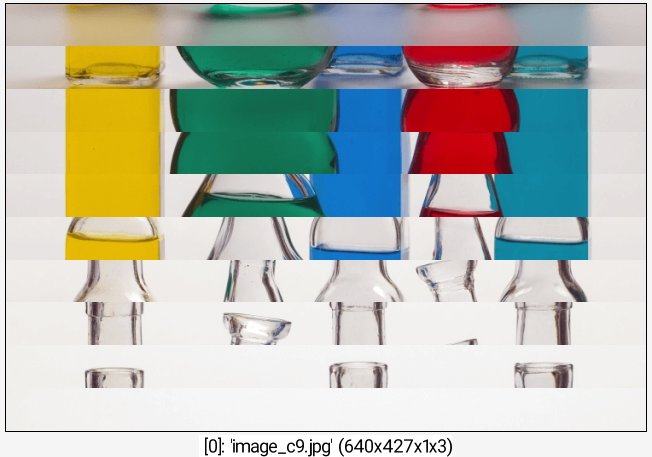

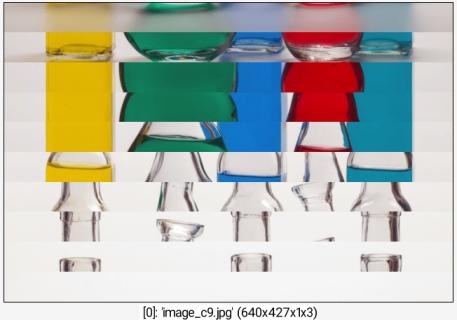

• Example #1

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> split y,10 reverse append y

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> split y,10 reverse append y

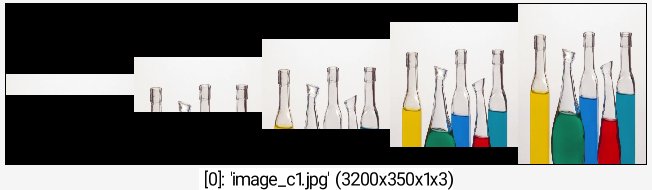

• Example #2

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> repeat 5 { +rows[0] 0,{10+18*$>}% } remove[0] append x,0.5

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> repeat 5 { +rows[0] 0,{10+18*$>}% } remove[0] append x,0.5

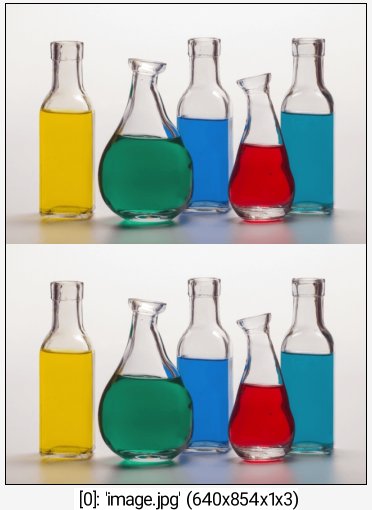

• Example #3

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> append[0] [0],y

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> append[0] [0],y
