ssd_patch

Arguments:

[patch],_use_fourier={ 0:No | 1:Yes },_boundary_conditions

Description:

Compute fields of SSD between selected images and specified patch.

Argument boundary_conditions is valid only when use_fourier=0.
boundary_conditions can be { 0:Dirichlet | 1:Neumann | 2:Periodic | 3:Mirror }.

Default values:

use_fourier=0 and boundary_conditions=0.

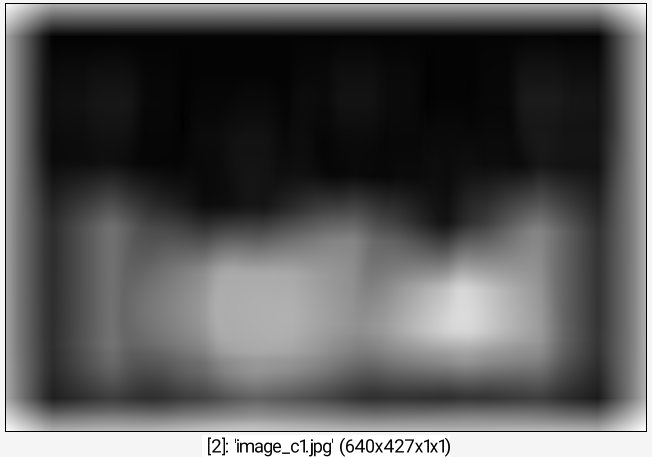

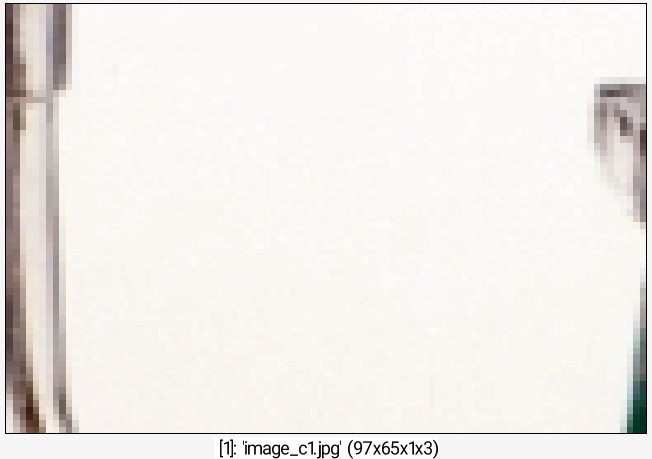

Example of use:

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +crop 20%,20%,35%,35% +ssd_patch[0] [1],0,0

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +crop 20%,20%,35%,35% +ssd_patch[0] [1],0,0

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +crop 20%,20%,35%,35% +ssd_patch[0] [1],0,0

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +crop 20%,20%,35%,35% +ssd_patch[0] [1],0,0
