rep_mode_blend

Arguments:

_tie_breaker={ 0=NaN | 1=Average }

Description:

Blend layers using the statistical mode of pixel colors.

_tie_breaker determines how to resolve pixels where two or more colors
share the highest frequency (i.e. there is no single mode).
0 = output NaN for tied pixels
1 = output the average of the tied colors
Author: Reptorian.

Default values:

_tie_breaker=0

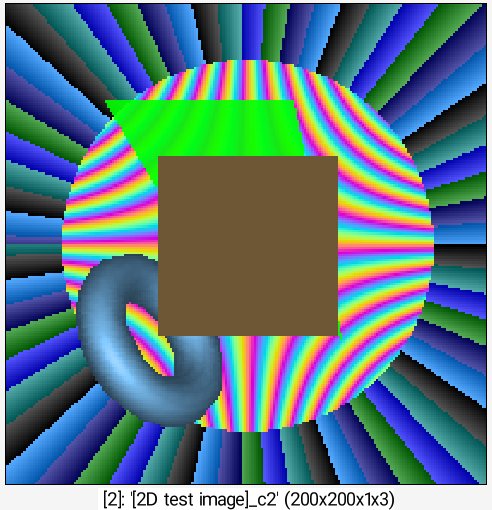

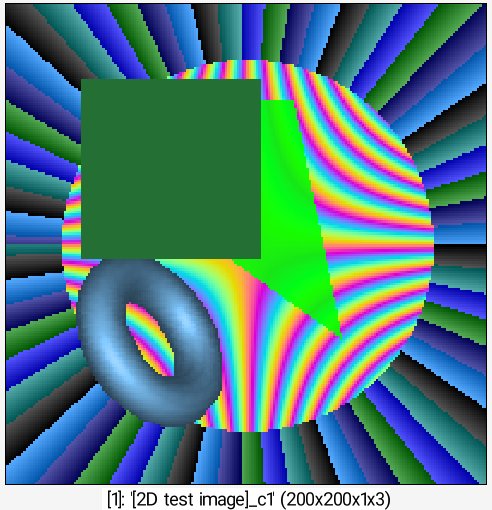

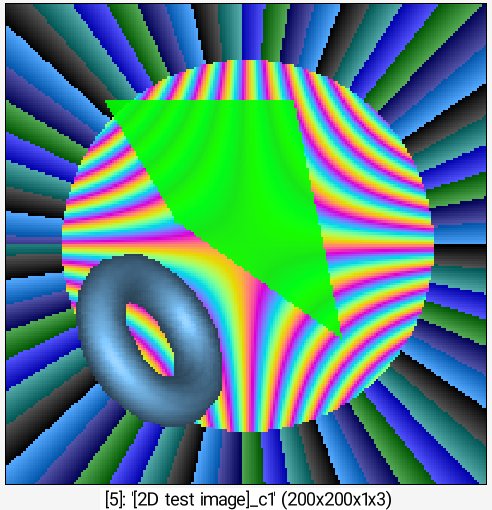

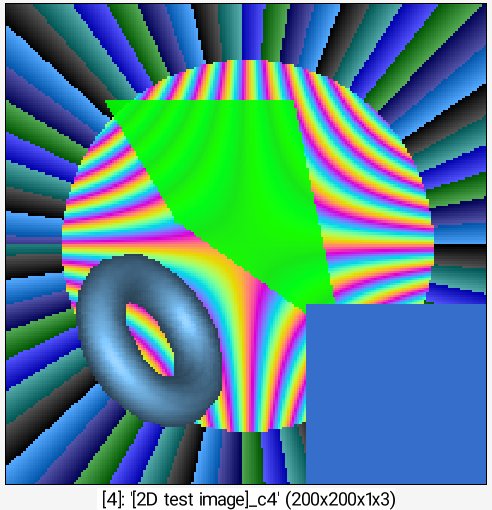

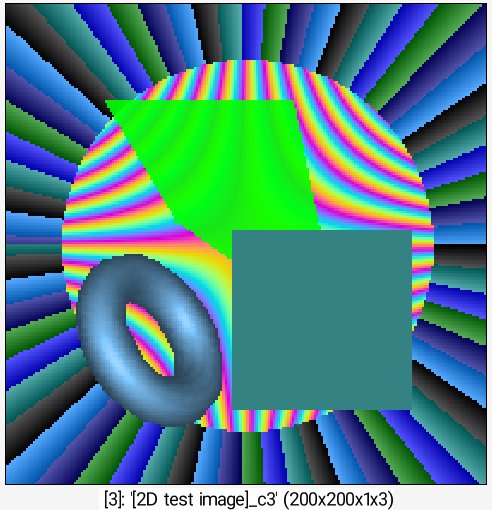

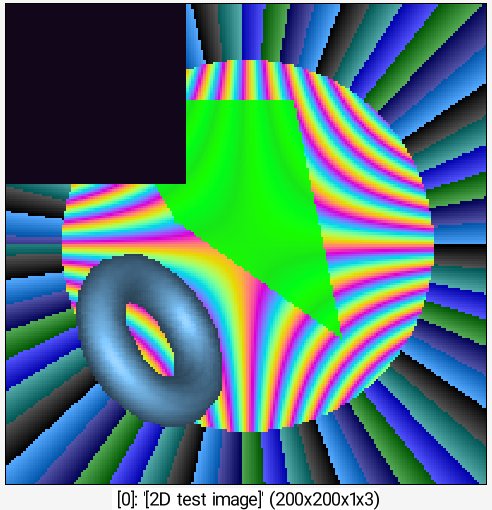

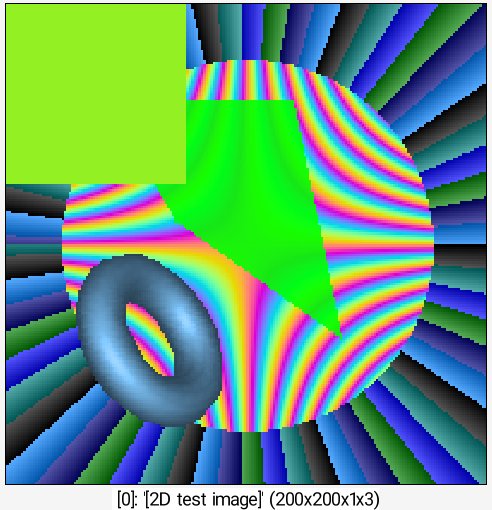

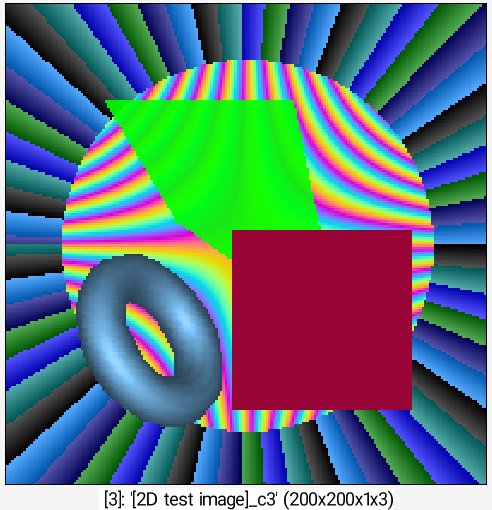

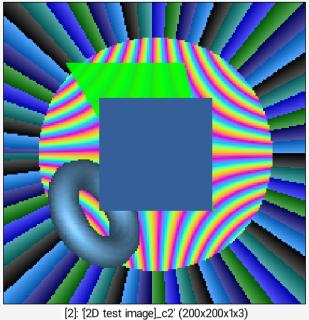

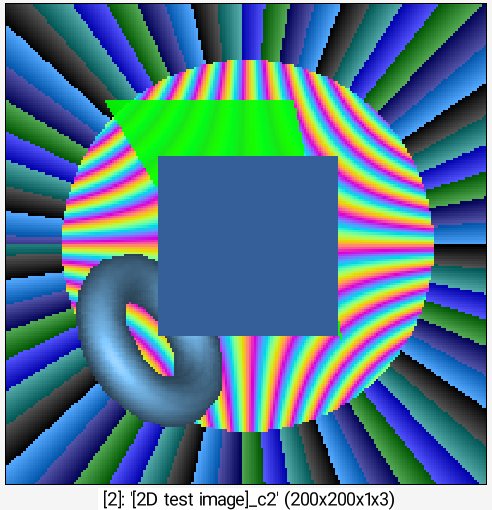

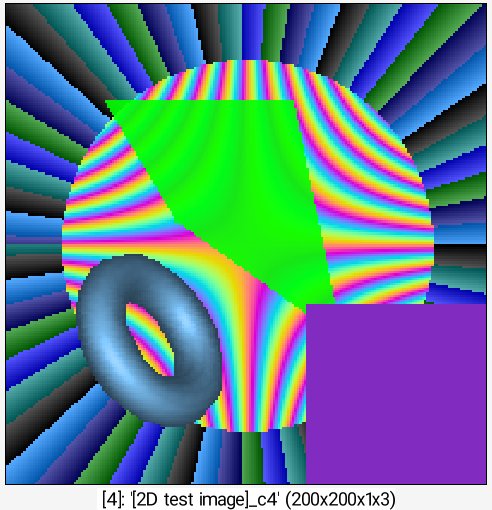

Example of use:

testimage2d 200,200 .x4 foreach { 75,75,1,3,[{expr('v(255)',3)}] j.. .,$%~,$%~ rm. } +rep_mode_blend

Command: testimage2d 200,200 .x4 foreach { 75,75,1,3,[{expr('v(255)',3)}] j.. .,$%~,$%~ rm. } +rep_mode_blend

Command: testimage2d 200,200 .x4 foreach { 75,75,1,3,[{expr('v(255)',3)}] j.. .,$%~,$%~ rm. } +rep_mode_blend

Command: testimage2d 200,200 .x4 foreach { 75,75,1,3,[{expr('v(255)',3)}] j.. .,$%~,$%~ rm. } +rep_mode_blend

Command: testimage2d 200,200 .x4 foreach { 75,75,1,3,[{expr('v(255)',3)}] j.. .,$%~,$%~ rm. } +rep_mode_blend

Command: testimage2d 200,200 .x4 foreach { 75,75,1,3,[{expr('v(255)',3)}] j.. .,$%~,$%~ rm. } +rep_mode_blend

Command: testimage2d 200,200 .x4 foreach { 75,75,1,3,[{expr('v(255)',3)}] j.. .,$%~,$%~ rm. } +rep_mode_blend
