vanvliet

Built-in command

Arguments:

• std_deviation>=0[%],order={ 0 | 1 | 2 | 3 },axis={ x | y | z | c },_boundary_conditions

Description:

Apply Vanvliet recursive filter on selected images, along specified axis and with

specified standard deviation, order and boundary conditions.
boundary_conditions can be { 0:dirichlet | 1:neumann | 2:periodic | 3:mirror }.

Default values:

boundary_conditions=1.

Examples of use:

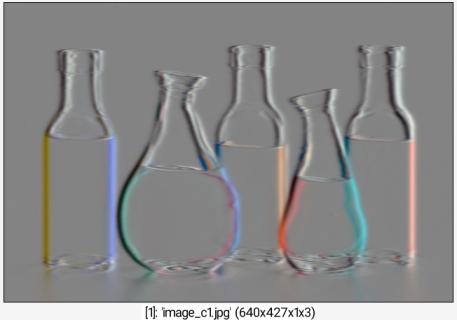

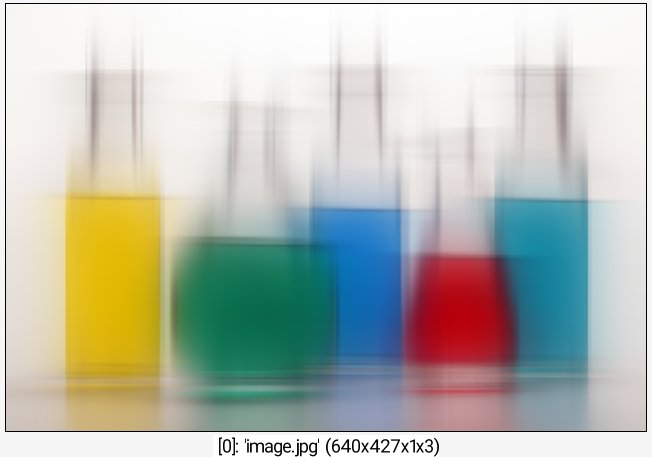

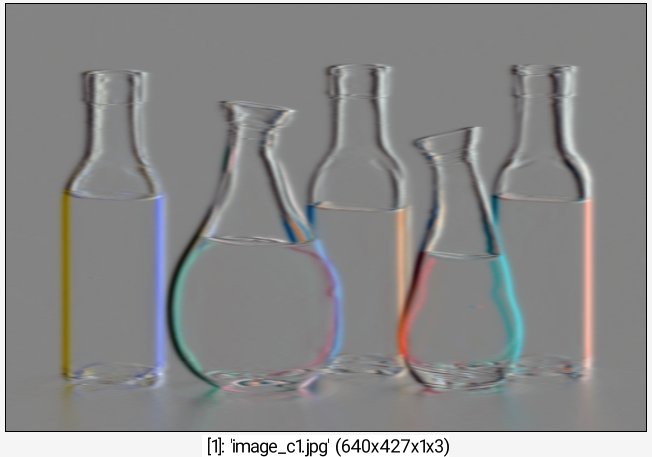

• Example #1

• Example #2

Command: image.jpg +vanvliet 30,0,x vanvliet[-2] 30,0,y add
