surfels3d

Arguments:

• 0<=_left_right_attenuation<=1,0<=_top_bottom_attenuation<=1,0<=_closer_further_attenuation<=1

Description:

Convert selected images to 3D objects composed of 3D surfels (or 2D edgels for 2D images).

The binary shape is composed of all non-zero voxels.
The resulting 3D object is colored according to the color of non zero voxels.

Default values:

left_right_attenuation=1, top_bottom_attenuation=1 and closer_further_attenuation=1.

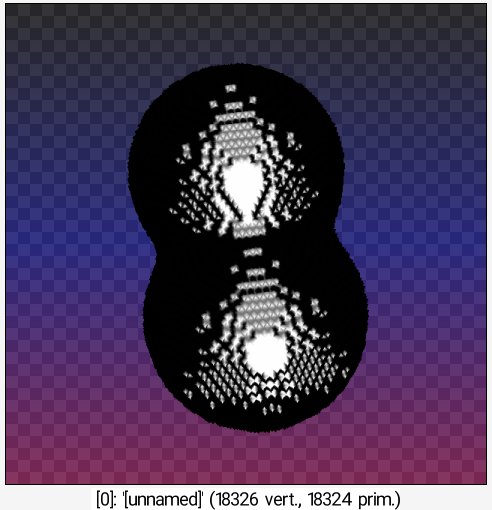

Example of use:

Command: 100,100,100 = 1,40%,40%,40% = 1,60%,60%,60% distance 1 lt 30% blur 3 gt 50% surfels3d 0.5,0.75,1
