quiver

Arguments:

[function_image],_sampling[%]>0,_factor>=0,_is_arrow={ 0:No | 1:Yes },_opacity,_color1,...

Description:

Draw specified 2D vector/orientation field on selected images.

Default values:

sampling=5%, factor=1, is_arrow=1, opacity=1, pattern=(undefined)

and color1=0.

Examples of use:

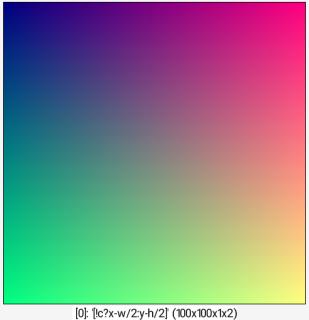

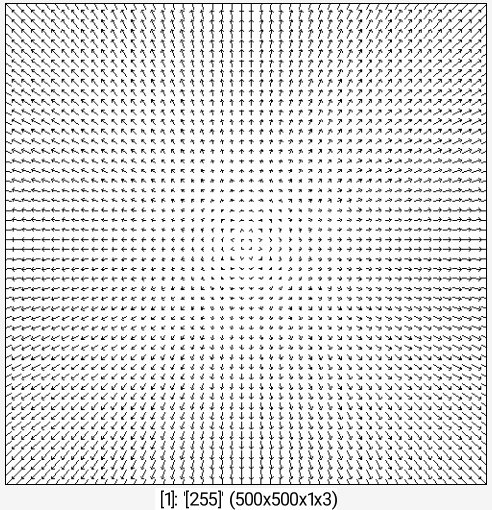

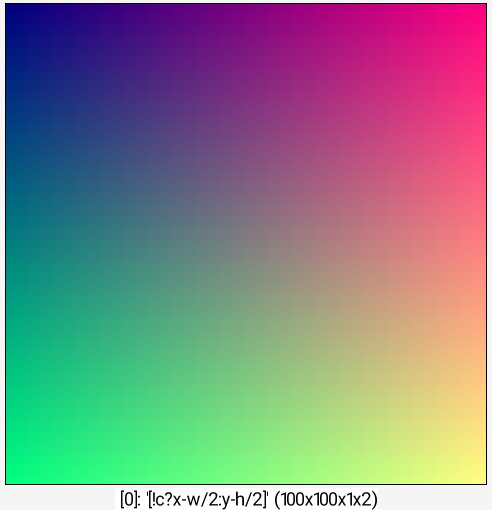

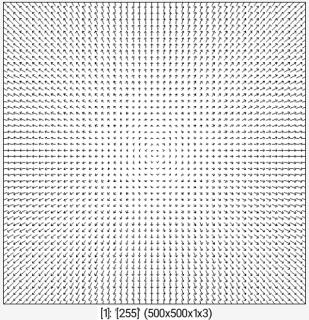

• Example #1

100,100,1,2,'!c?x-w/2:y-h/2' 500,500,1,3,255 quiver[-1] [-2],10

Command: 100,100,1,2,'!c?x-w/2:y-h/2' 500,500,1,3,255 quiver[-1] [-2],10

Command: 100,100,1,2,'!c?x-w/2:y-h/2' 500,500,1,3,255 quiver[-1] [-2],10

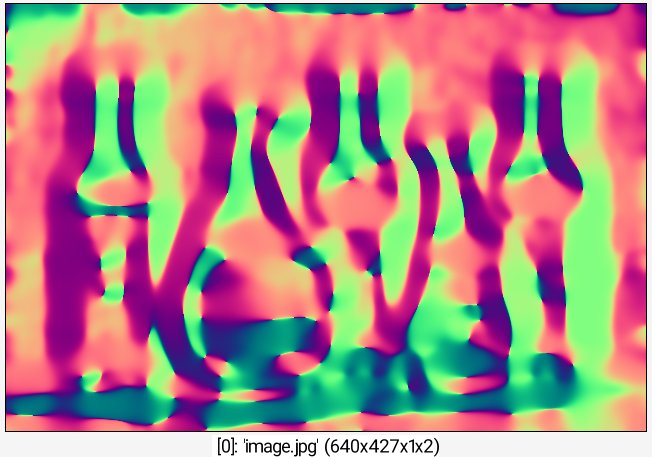

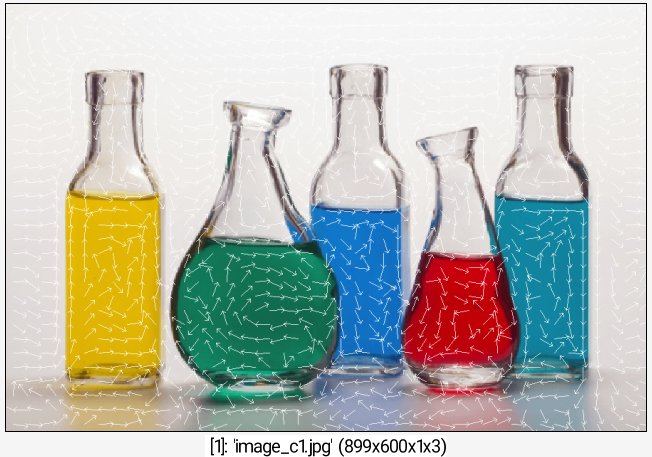

• Example #2

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +rescale2d ,600 luminance[0] gradient[0] mul[1] -1 reverse[0,1] append[0,1] c blur[0] 8 orientation[0] quiver[1] [0],20,1,1,0.8,255

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +rescale2d ,600 luminance[0] gradient[0] mul[1] -1 reverse[0,1] append[0,1] c blur[0] 8 orientation[0] quiver[1] [0],20,1,1,0.8,255

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +rescale2d ,600 luminance[0] gradient[0] mul[1] -1 reverse[0,1] append[0,1] c blur[0] 8 orientation[0] quiver[1] [0],20,1,1,0.8,255
