gradient_norm

Arguments:

• _scheme,_boundary_conditions    or
• (no arg)

Description:

Compute the gradient norm of selected images.

scheme can be { -1:Backward | 0:Centered | 1:Forward | 2:Sobel | 3:Rotation-invariant (default) | 4:Deriche | 5:Vanvliet | 6:FB-Maxabs }.
boundary_conditions can be { 0:Dirichlet | 1:Neumann | 2:Periodic | 3:Mirror }.

Default values:

scheme=0 and boundary_conditions=1.

This command has a tutorial page.

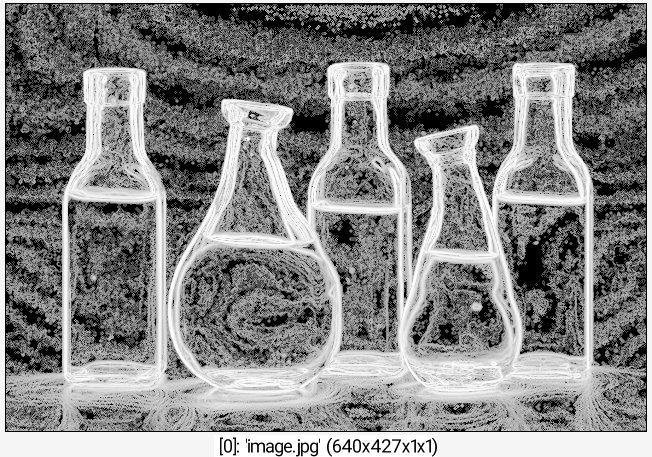

Example of use:

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> gradient_norm equalize
