function1d

Arguments:

0<=smoothness<=1,x0>=0,y0,x1>=0,y1,...,xn>=0,yn

Description:

Insert continuous 1D spline function from specified list of keypoints (xk,yk)

in range [0,max(xk)] (xk are positive integers).

Example of use:

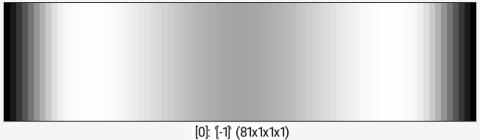

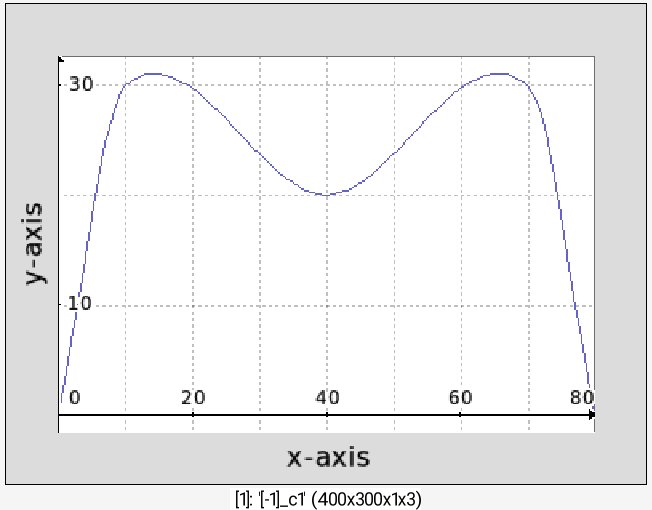

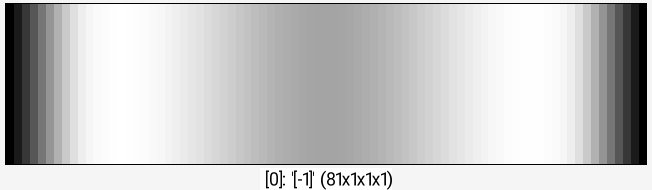

function1d 1,0,0,10,30,40,20,70,30,80,0 +display_graph 400,300

Command: function1d 1,0,0,10,30,40,20,70,30,80,0 +display_graph 400,300

Command: function1d 1,0,0,10,30,40,20,70,30,80,0 +display_graph 400,300
