diffusiontensors

Arguments:

• _sharpness>=0,0<=_anisotropy<=1,_alpha[%],_sigma[%],is_sqrt={ 0:No | 1:Yes }

Description:

Compute the diffusion tensors of selected images for edge-preserving smoothing algorithms.

Default values:

sharpness=0.7, anisotropy=0.3, alpha=0.6, sigma=1.1 and is_sqrt=0.

This command has a tutorial page.

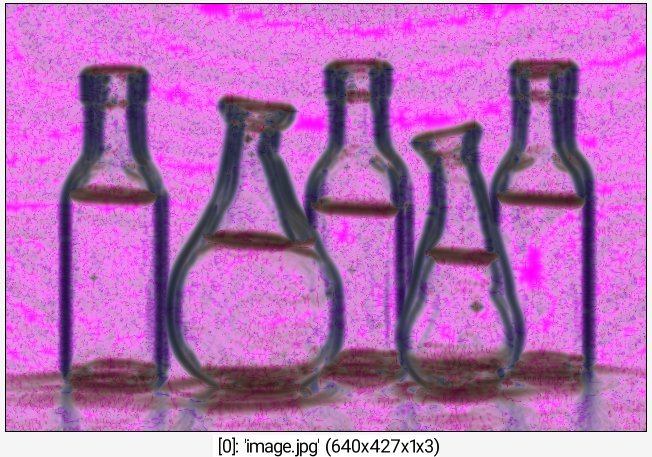

Example of use:

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> diffusiontensors 0.8 abs pow 0.2
