crop

Built-in command

Arguments:

  • x0[%],x1[%],_boundary_conditions    or
  • x0[%],y0[%],x1[%],y1[%],_boundary_conditions    or
  • x0[%],y0[%],z0[%],x1[%],y1[%],z1[%],_boundary_conditions    or
  • x0[%],y0[%],z0[%],c0[%],x1[%],y1[%],z1[%],c1[%],_boundary_conditions

Description:

Crop selected images with specified region coordinates.

(equivalent to shortcut command z).


boundary_conditions can be { 0:Dirichlet | 1:Neumann | 2:Periodic | 3:Mirror }.

Default values:

boundary_conditions=0.

Examples of use:

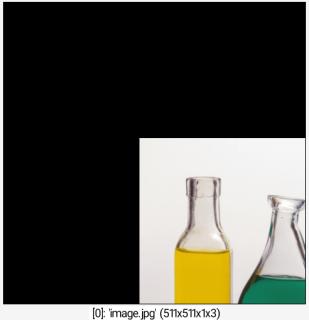

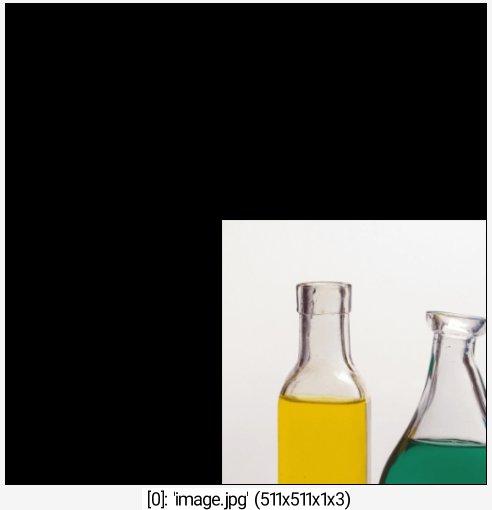

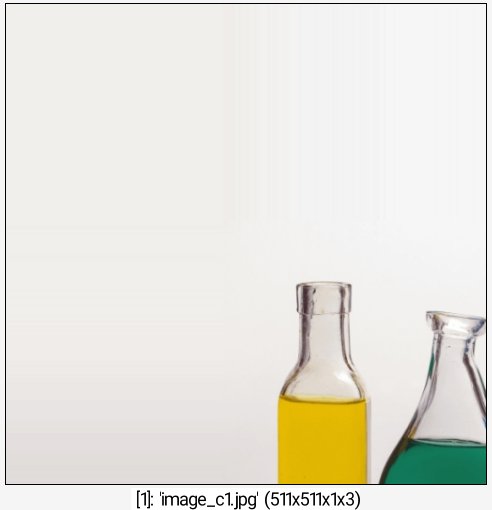

• Example #1

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +crop -230,-230,280,280,1 crop[0] -230,-230,280,280,0

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +crop -230,-230,280,280,1 crop[0] -230,-230,280,280,0
Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> +crop -230,-230,280,280,1 crop[0] -230,-230,280,280,0

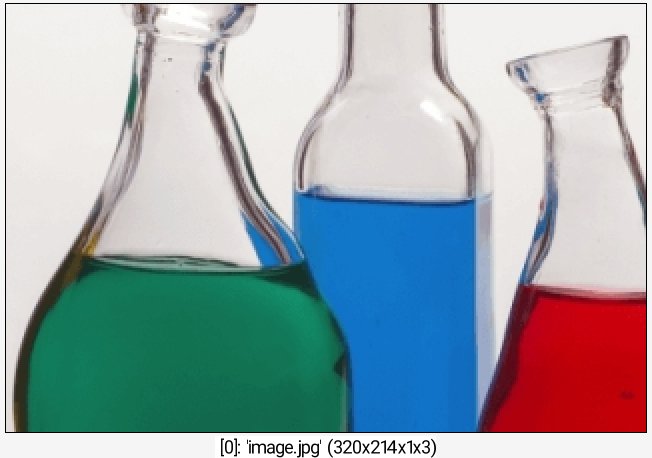

• Example #2

<a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> crop 25%,25%,75%,75%

Command: <a href="image.jpg" class="highslide" onclick="return hs.expand(this)">image.jpg</a> crop 25%,25%,75%,75%
