bilateral

Built-in command

Arguments:

• [guide],std_deviation_s[%]>=0,std_deviation_r[%]>=0,_sampling_s>=0,_sampling_r>=0    or
• std_deviation_s[%]>=0,std_deviation_r[%]>=0,_sampling_s>=0,_sampling_r>=0

Description:

Blur selected images by anisotropic (eventually joint/cross) bilateral filtering.

If a guide image is provided, it is used for drive the smoothing filter.
A guide image must be of the same xyz-size as the selected images.
Set sampling arguments to 0 for automatic adjustment.

Example of use:

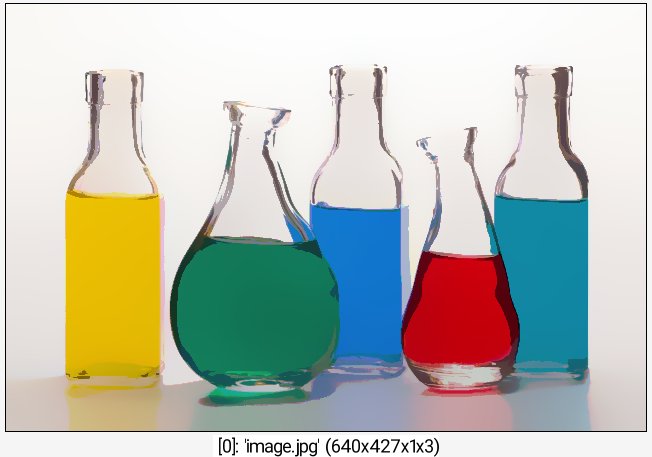

Command: image.jpg repeat 5 { bilateral 10,10 }
