array3d

Arguments:

  • size_x>=1,_size_y>=1,_size_z>=1,_offset_x[%],_offset_y[%],_offset_y[%]

Description:

Duplicate a 3D object along the X,Y and Z axes.

Default values:

size_y=1, size_z=1 and offset_x=offset_y=offset_z=100%.

Example of use:

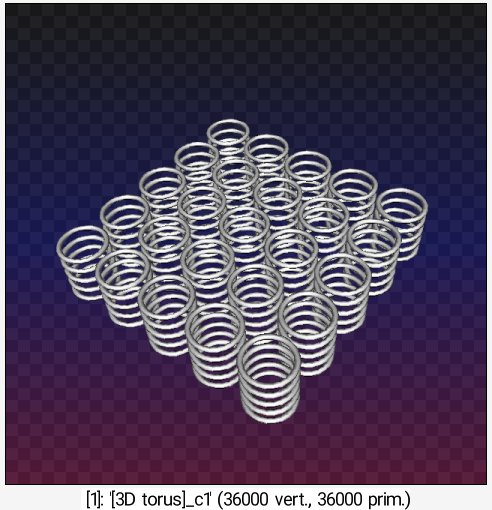

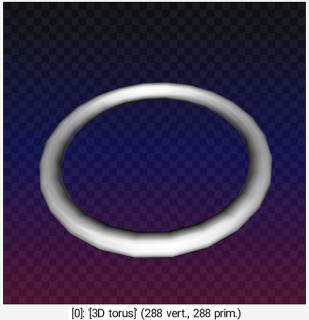

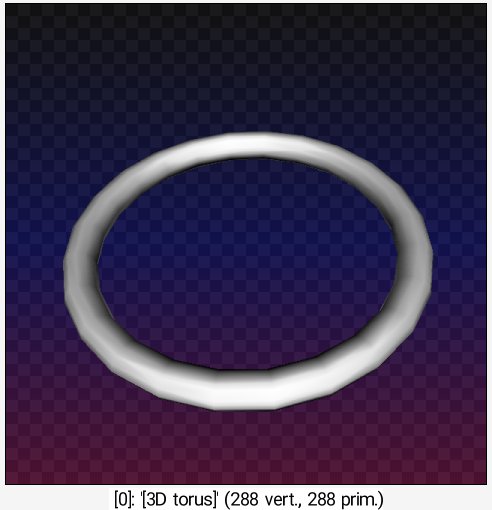

torus3d 10,1 +array3d 5,5,5,110%,110%,300%

Command: torus3d 10,1 +array3d 5,5,5,110%,110%,300%
Command: torus3d 10,1 +array3d 5,5,5,110%,110%,300%
