add3d

Built-in command

Arguments:

tx,_ty,_tz or
[object3d] or
(no arg)

Description:

Shift selected 3D objects with specified displacement vector, or merge them with specified

3D object, or merge all selected 3D objects together.

(equivalent to shortcut command +3d).

Default values:

ty=tz=0.

Examples of use:

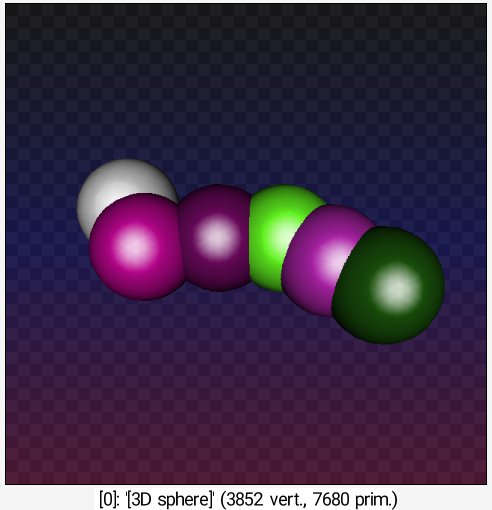

• Example #1

sphere3d 10 repeat 5 { +add3d[-1] 10,{u(-10,10)},0 color3d[-1] ${-rgb} } add3d

Command: sphere3d 10 repeat 5 { +add3d[-1] 10,{u(-10,10)},0 color3d[-1] ${-rgb} } add3d

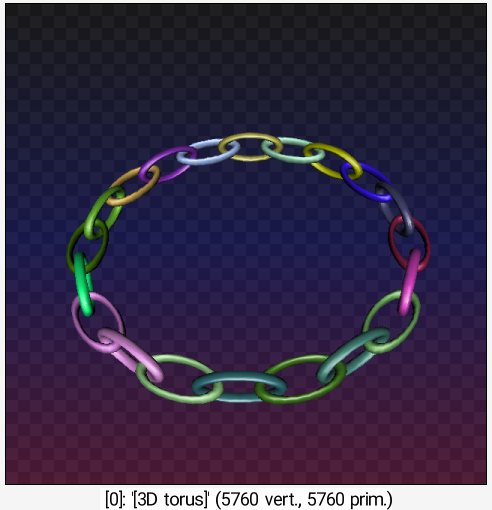

• Example #2

repeat 20 { torus3d 15,2 color3d[-1] ${-rgb} mul3d[-1] 0.5,1 if $>%2 rotate3d[-1] 0,1,0,90 fi add3d[-1] 70 add3d rotate3d[-1] 0,0,1,18 } double3d 0

Command: repeat 20 { torus3d 15,2 color3d[-1] ${-rgb} mul3d[-1] 0.5,1 if $>%2 rotate3d[-1] 0,1,0,90 fi add3d[-1] 70 add3d rotate3d[-1] 0,0,1,18 } double3d 0
