mode3d

Arguments:

Description:

Set static 3D rendering mode.

(equivalent to shortcut command m3d).


mode can be { -1:bounding-box | 0:dots | 1:wireframe | 2:flat | 3:flat-shaded | 4:gouraud-shaded | 5:phong-shaded }.
Bounding-box mode (mode==-1) is active only for the interactive 3D viewer.

Default values:

mode=4.

Example of use:

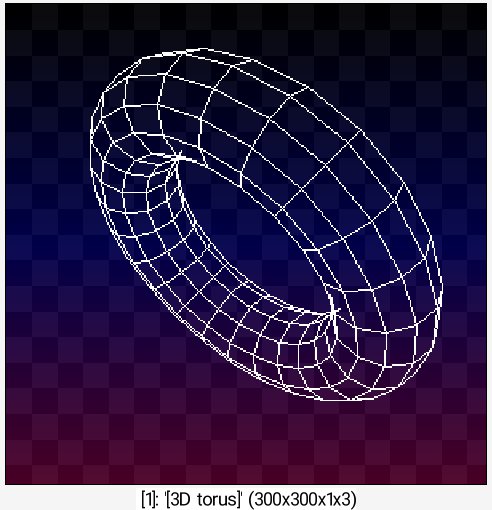

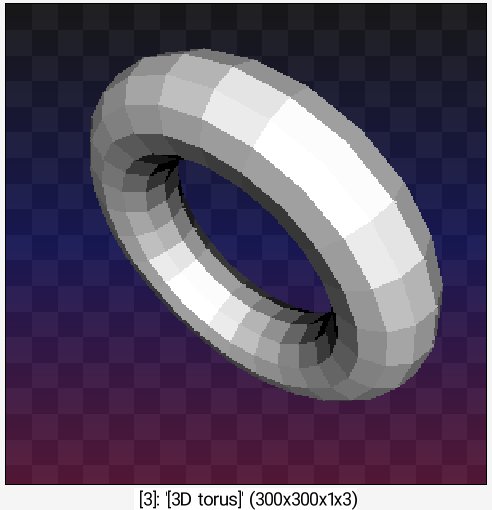

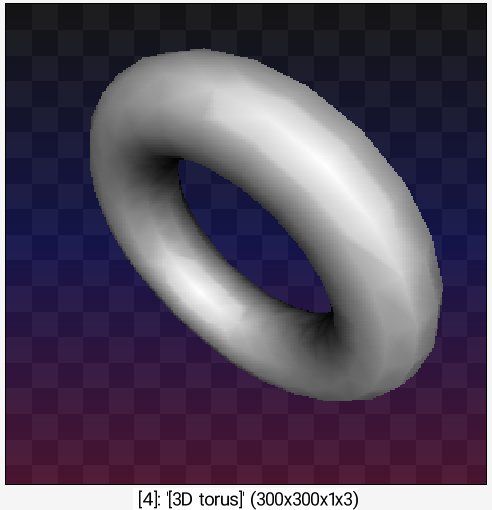

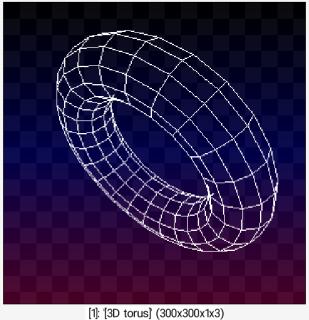

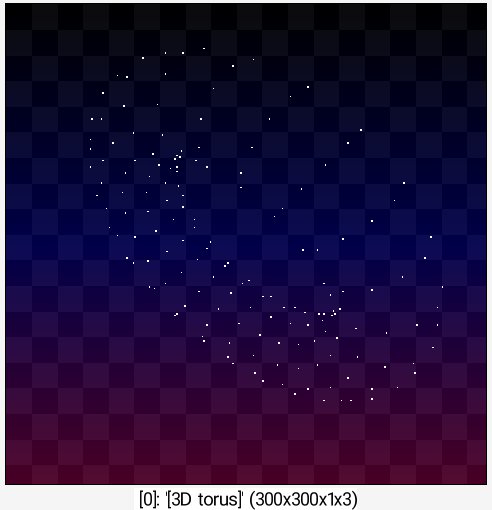

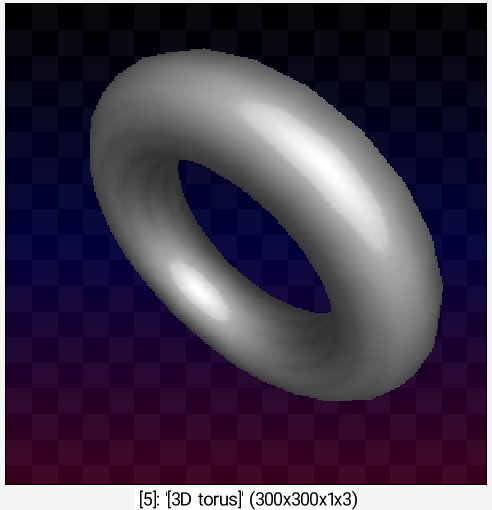

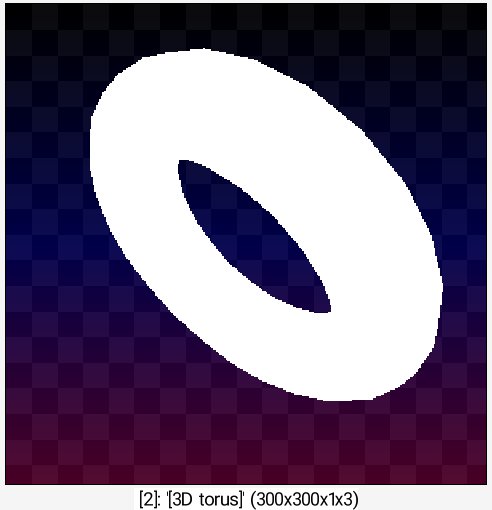

(0,1,2,3,4,5) double3d 0 repeat w { torus3d 100,30 rotate3d[-1] 1,1,0,60 mode3d {0,@$>} snapshot3d[-1] 300 } remove[0]

Command: (0,1,2,3,4,5) double3d 0 repeat w { torus3d 100,30 rotate3d[-1] 1,1,0,60 mode3d {0,@$>} snapshot3d[-1] 300 } remove[0]
Command: (0,1,2,3,4,5) double3d 0 repeat w { torus3d 100,30 rotate3d[-1] 1,1,0,60 mode3d {0,@$>} snapshot3d[-1] 300 } remove[0]
Command: (0,1,2,3,4,5) double3d 0 repeat w { torus3d 100,30 rotate3d[-1] 1,1,0,60 mode3d {0,@$>} snapshot3d[-1] 300 } remove[0]
Command: (0,1,2,3,4,5) double3d 0 repeat w { torus3d 100,30 rotate3d[-1] 1,1,0,60 mode3d {0,@$>} snapshot3d[-1] 300 } remove[0]
Command: (0,1,2,3,4,5) double3d 0 repeat w { torus3d 100,30 rotate3d[-1] 1,1,0,60 mode3d {0,@$>} snapshot3d[-1] 300 } remove[0]
Command: (0,1,2,3,4,5) double3d 0 repeat w { torus3d 100,30 rotate3d[-1] 1,1,0,60 mode3d {0,@$>} snapshot3d[-1] 300 } remove[0]
