polygon

Built-in command

Arguments:

Description:

Draw specified colored N-vertices polygon on selected images.

pattern is an hexadecimal number starting with 0x which can be omitted
even if a color is specified. If a pattern is specified, the polygon is
drawn outlined instead of filled.

Default values:

opacity=1, pattern=(undefined) and color1=0.

Examples of use:

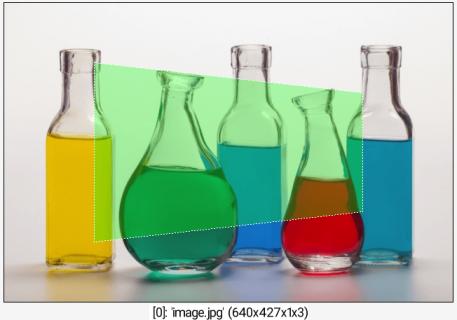

• Example #1

image.jpg polygon 4,20%,20%,80%,30%,80%,70%,20%,80%,0.3,0,255,0 polygon 4,20%,20%,80%,30%,80%,70%,20%,80%,1,0xCCCCCCCC,255

Command: image.jpg polygon 4,20%,20%,80%,30%,80%,70%,20%,80%,0.3,0,255,0 polygon 4,20%,20%,80%,30%,80%,70%,20%,80%,1,0xCCCCCCCC,255

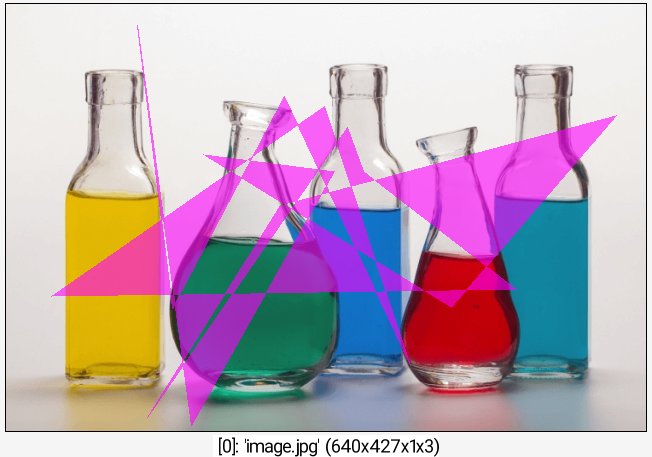

• Example #2

image.jpg 2,16,1,1,'u(x?{h}:{w})' polygon[-2] {h},{^},0.6,255,0,255 remove[-1]

Command: image.jpg 2,16,1,1,'u(x?{h}:{w})' polygon[-2] {h},{^},0.6,255,0,255 remove[-1]
