label

Built-in command

Arguments:

Description:

Label connected components in selected images.

If is_L2_norm=1, tolerances are compared against L2-norm, otherwise L1-norm is used.

Default values:

tolerance=0, is_high_connectivity=0 and is_L2_norm=1.

This command has a tutorial page.

Examples of use:

• Example #1

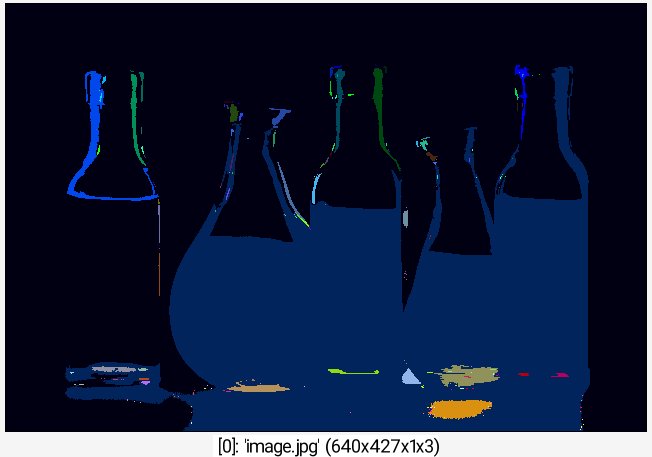

image.jpg luminance threshold 60% label normalize 0,255 map 0

Command: image.jpg luminance threshold 60% label normalize 0,255 map 0

• Example #2

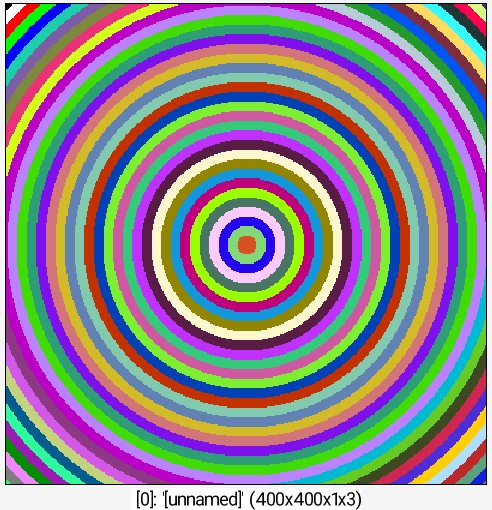

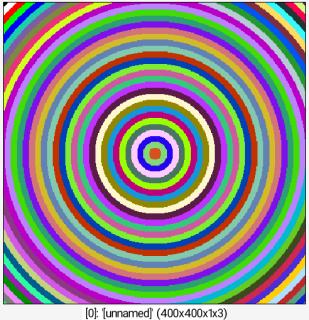

400,400 set 1,50%,50% distance 1 mod 16 threshold 8 label mod 255 map 2

Command: 400,400 set 1,50%,50% distance 1 mod 16 threshold 8 label mod 255 map 2
