# Examples of Use

gmic is a generic image processing tool which can be used in a wide variety of situations. The few examples below illustrate possible uses of this tool:

#### View a list of images:

\$ gmic file1.bmp file2.jpeg

#### Convert an image file:

\$ gmic input.bmp output output.jpg

#### Create a volumetric image from a movie sequence:

\$ gmic input.mpg append z output output.hdr

#### Denoise a color image:

\$ gmic image.jpg denoise 30,10 output denoised.jpg

#### Compose two images using overlay layer blending:

\$ gmic image1.jpg image2.jpg blend overlay output blended.jpg

#### Evaluate a mathematical expression:

\$ gmic echo "cos(pi/4)^2+sin(pi/4)^2={cos(pi/4)^2+sin(pi/4)^2}"

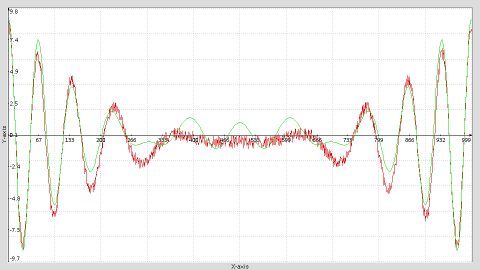

#### Plot a 2D function:

\$ gmic 1000,1,1,2 fill "X=3*(x-500)/500;X^2*sin(3*X^2)+(!c?u(0,-1):cos(X*10))" plot

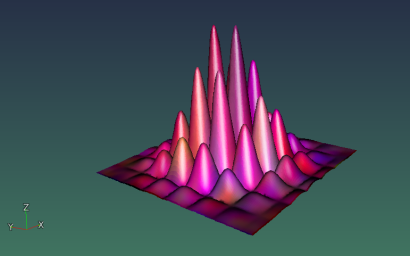

#### Plot a 3D elevated function in random colors:

\$ gmic 128,128,1,3,"u(0,255)" plasma 10,3 blur 4 sharpen 10000 n 0,255 elevation3d[-1] "'X=(x-64)/6;Y=(y-64)/6;100*exp(-(X^2+Y^2)/30)*abs(cos(X)*sin(Y))'"

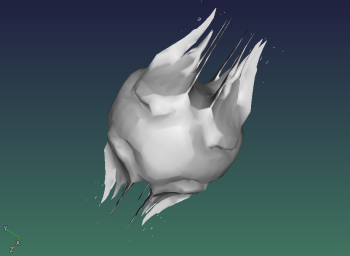

#### Plot the isosurface of a 3D volume:

\$ gmic mode3d 5 moded3d 5 double3d 0 isosurface3d "'x^2+y^2+abs(z)^abs(4*cos(x*y*z*3))'",3

#### Render a G'MIC 3D logo:

\$ gmic 0 text G\'MIC,0,0,53,1,1,1,1 expand xy,10 blur 1 normalize 0,100 +plasma 0.4 add blur 1 elevation3d -0.1 moded3d 4

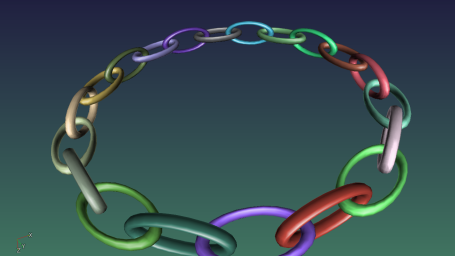

#### Generate a 3D ring of torii:

\$ gmic repeat 20 torus3d 15,2 color3d[-1] "{u(60,255)},{u(60,255)},{u(60,255)}" *3d[-1] 0.5,1 if "{\$>%2}" rotate3d[-1] 0,1,0,90 fi add3d[-1] 70 add3d rotate3d 0,0,1,18 done moded3d 3 mode3d 5 double3d 0

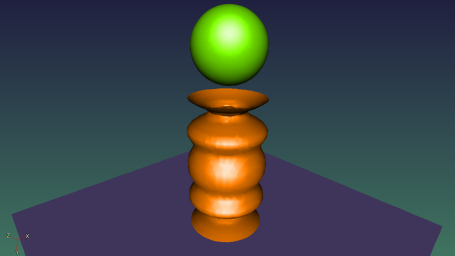

#### Create a vase from a 3D isosurface:

\$ gmic moded3d 4 isosurface3d "'x^2+2*abs(y/2)*sin(2*y)^2+z^2-3',0" sphere3d 1.5 sub3d[-1] 0,5 plane3d 15,15 rotate3d[-1] 1,0,0,90 center3d[-1] add3d[-1] 0,3.2 color3d[-1] 180,150,255 color3d[-2] 128,255,0 color3d[-3] 255,128,0 add3d

#### Launch a set of interactive demos:

\$ gmic demos
