distance

Built-in command

Arguments:

• isovalue[%],_metric    or
• isovalue[%],[metric],_method

Description:

Compute the unsigned distance function to specified isovalue, opt. according to a custom metric.

metric can be { 0:Chebyshev | 1:Manhattan | 2:Euclidean | 3:Squared-euclidean }.
method can be { 0:Fast-marching | 1:Low-connectivity dijkstra | 2:High-connectivity dijkstra | 3:1+Return path | 4:2+Return path }.

Default values:

metric=2 and method=0.

This command has a tutorial page.

Examples of use:

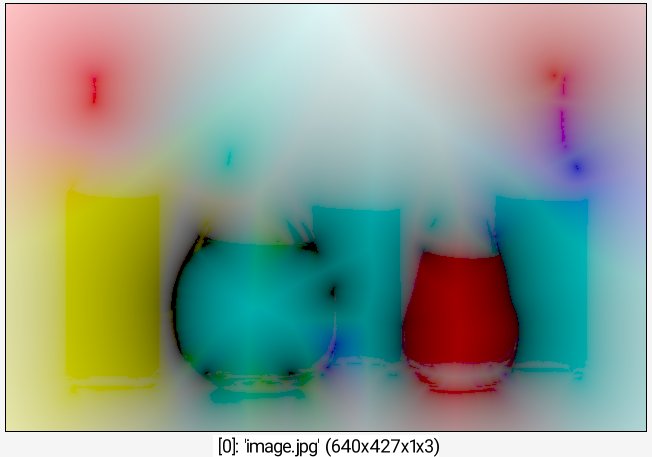

• Example #1

Command: image.jpg threshold 20% distance 0 pow 0.3

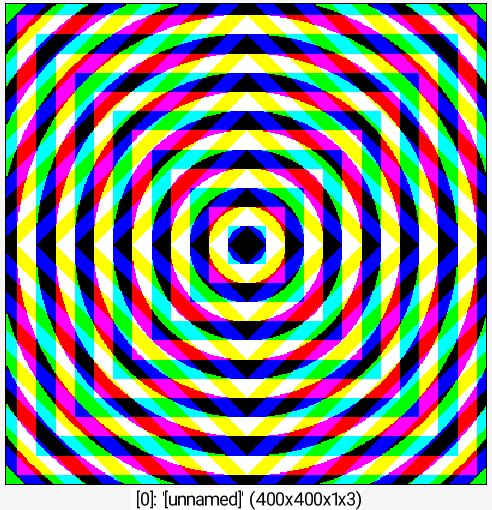

• Example #2

Command: 400,400 set 1,50%,50% +distance[0] 1,2 +distance[0] 1,1 distance[0] 1,0 mod 32 threshold 16 append c
